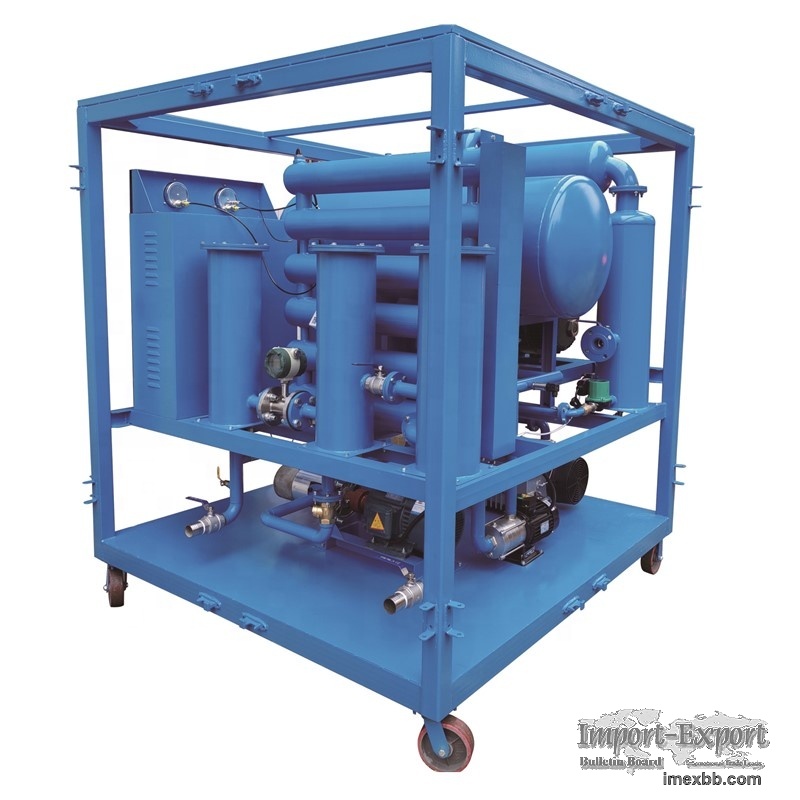

ZYD-50 Double-Stage High Vacuum Transformer Oil Filtration & Dehydration

JS-ZYD-50 Series Double Stage High Vacuum Transformer Oil Purifier is
specially designed for treating transformer oil and other kinds of insulating
liquids in the oil-filled power equipment. Through degasification,
dehydration, and filtration process, the dissolved gases and moisture, solid
impurities, contaminations can be effectively removed from oil.

JS-ZYD-50 Series Double Stage High Vacuum Transformer Oil Purifier is widely
used in factory workshops, power station and power transmission. Utilizing
JUNSUN ZYD-50 High Vacuum Oil Purifier, the quality of transformer oil will
be greatly improved, thus extending the service life of transformer oil and
ensuring safety operation of oil-filled power equipment.

Besides, with additional design, JS-ZYD-50 Series Double Stage High Vacuum
Transformer Oil Purifier can be also used as vacuum oil drying/ vacuum oil
filling/ vacuum pumping equipment for transformers.

MAIN FEATURES:

1. Double stage vacuum pumping system: based on the vacuum pump, this machine
also installs root vacuum pump, large pumping speed, the machine can reach a
very good ultimate vacuum.

2. Specially designed and unique "T" shape Vacuum separation chamber,
advanced degasification and dehydration technology, which eliminates gas and
water very quickly and effectively.

3. High precision three stage oil filtration system, including primary
filter, secondary filter, fine filter with gradually increasing precision,
the dimensions of filter element is bigger than most of other manufacturers,
which can effectively remove mechanical impurities from oil.

4. Equipped with automatic temperature control system, automatic oil level
control system, automatic defoaming control system, automatic pressure
protection system, which guarantees safe and reliable operation in the long
term.

5. Equipped with interlocking protection system, which connect the oil pump,
electric heater and oil level controller, avoid blank heating, blank pumping,
oil leakage and electricity leakage. If there is any fault, the machine will
be switched off automatically.

6. Equipped with high efficiency electric heating system, heating the oil
uniformly, avoid the deterioration of oil during heating process.

7. This machine can be operated both online and offline. In addition, it can
be used as an independent vacuum pump system for the evacuation operation of
the transformer (if you need this function, please inform us before
manufacturing).

8. JUNSUN supplies a wide range of optional parts for the oil purifier,
always ensure our customers can acquire the most suitable machine with all
the configurations they need, to satisfy their every specific application.

Minimum Order: 1 sets
