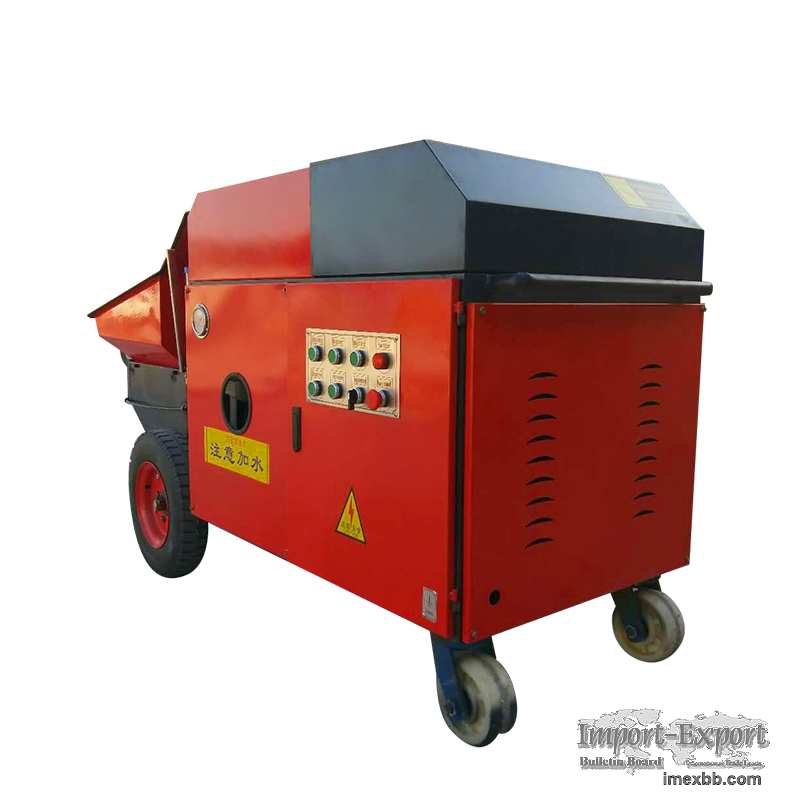

ZW-15 Concrete Pump JOKI

ZW-15 stationary pump is designed for heavy working conditions. Concrete
output: 6-8m³/h
Reliable equipment quality Small secondary construction column pumps mostly use
dual-pump, dual-circuit open hydraulic systems. The pumping system is simple,
the components have a long service life and high reliability. Fully enclosed
structural electrical control box, protection control device can work under
harsh conditions. The Plc dual system control design simplifies the circuit
while significantly improving its reliability and lifetime. Make the equipment
work continuously.
https://www.qijiu-machine.com/pro , duct-concrete-pump-zw-15.html
Product use:

Effectively solve the problem that the top of the bottom column is difficult to
be poured in high quality during the pouring process of the structural column,
and the flatness and the perceived quality of the structural column are
guaranteed.

JOKI Stationary concrete pump is suitable for high-rise concrete fine stone
transportation, construction floor group structure column pouring, high pumping
efficiency, pumping system is ten times of manual construction, which
effectively improves production efficiency and saves labor cost. It is
secondary structural column pouring. A good helper.

The secondary construction column pouring machine is small in size, simple in
operation, low in labor intensity, flexible in construction on the floor, and
can be placed close to the lintel and the pillar.
Model ZW-15
power supply 380V
Power 15KW
Output 6-8m³/h
Greatest pressure/ Work pressure 18Mpa&10Mpa
Vertical conveying distance 60M
Horizontal conveying distance 30M
The max diameter of aggregate ≤2cm
Duct diameter 80mm
weight 750Kg
Dimensions 1800*680*1250mm

Minimum Order: 1 sets
