ZSQ-T200 Online Surface Quality Inspection System for Continuously Cast Pro

ZSQ-T200 Online Surface Quality Inspection System for Continuously Cast
Product (CCD)



Overview

The surface quality inspection of high temperature cast product is of great
significance to the repair of cast product’s defects and the hot delivery
of hot cast product. The ZSQ-T series of online surface quality inspection
equipment for casting billets developed by Wuhan CenterRise M&C Engineering
Co., Ltd can detect the defects such as scratches, cracks, holes, pits, edge
cracks, edge defects on the surface of the cast products, and meet the
customer's requirements for the quality inspection of the surface of the
cast product.



The principle of the system

The ZSQ-T200 online surface quality inspection system for continuously cast
products adopts the principle of optical imaging and uses a CCD image sensor
to input the surface image of the cast products to be detected into the
computer, and then the obtained image is processed by special image
processing software to find out whether there is any defect in the image.
After the defects in the image are obtained, the obtained defects are
classified through a special self-learning system, and finally the
requirements of the computer to automatically identify the surface defects
of the cast products are achieved.



The composition of the system

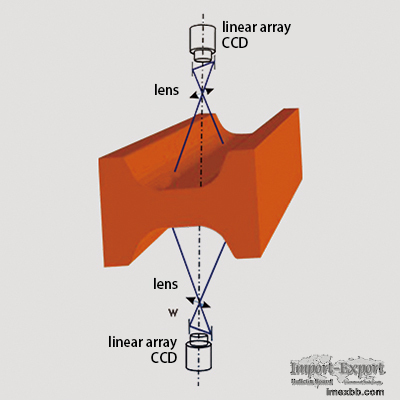

1. Optical part: The optical part is composed of multiple fixed-focus lenses
and linear CCD, which mainly realizes scanning and imaging of the surface of
the cast products.

2. Lighting part: The lighting part is composed of a high-brightness LED
array and a cylindrical lens, which realizes high-brightness and high-
uniformity lighting on the surface of the cast products.

3. Mechanical structure part: The mechanical structure part mainly realizes
the adjustment, installation and fixing of the optical part and the lighting
part, and consists of the imaging head (optical part), light box (lighting
part), bracket and control cabinet. The structure is required to be stable
and reliable.

4. Real-time processing: The real-time processing part is completed by the
multi-CCD data real-time sampling processing unit (high-speed DSP)
independently developed by Wuhan CenterRise M&C Engineering Co., Ltd.

5. Hardware part: The hardware part consists of high-speed storage
controller and storage hard disk array, Gigabit InternetMAC controller,
Gigabit Ethernet PHY. Rj45, and multiple high-speed workstations.

6. Detection software: The detection software mainly realizes the functions
of collection, storage, transmission, processing of CCD scanning images,
extraction of defects, analysis of defect characteristics, calculation of
defect size and position, storage of defect images, generation of cast
product’s surface quality analysis reports. etc.
