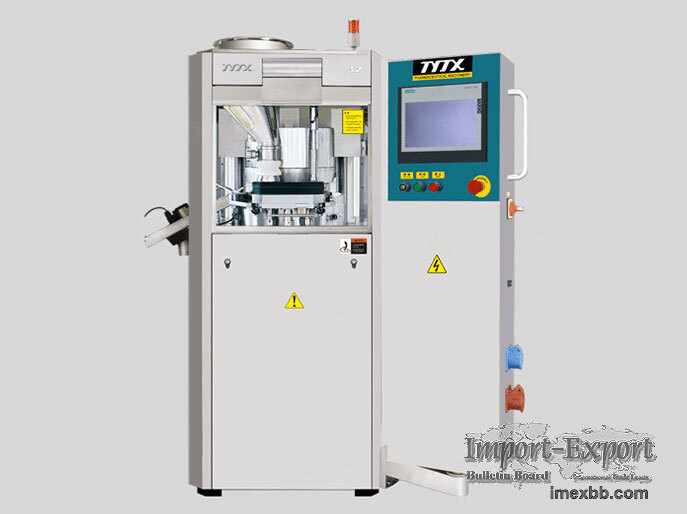

ZPT Series of Rotary Tablet Press Machine

The automatic tablet press machine for sale in contact with the product adopts
stainless steel. The hole of the punches & die is with a special anti-leakage
and anti-dust device. Convenient for disassembling the structure, make sure the
maintenance. The automatic pill press machine adopts the high definition,
isolated window design. Automatic tablet making machine also adopts reliable
safe sealing and dustproof design.
Specification of ZPT Series Rotary Press Machine

Model ZPT-15 ZPT-17 ZPT-20 ZPT-25
Punch&die type (EU) D B BB BBS
Number of press station 15 17 20 25
Max tablet diameter (mm) 25 16 13 11
Max abnormal prelate axis size (mm) 25 18 16 ——
Max output (Tablet/h) 70000 80000 95000 118000
Max filling depth (mm) 20 16 16 16
Max main pressure (KN) 100 80 80 80
Max pre pressure (KN) 12 12 12 12
Idle load noise dB (A) <75
Power 380v 50HZ 8.0KW
Size L×W×H (mm） 640×675×1620
Weight (kg) 675
Re: No additional information noted if there are any changes caused by the
technical development.

System Advantage of ZPT Series Tablet Pill Press Machine

The force feeder system solves the shortage situation of normal automatic
tablet press machine, the powder recovery system solves the cross-
contamination.

As one of the pharmaceutical machinery suppliers, we provide tablet press
diagram, fully automatic tablet making machine, automatic pill making machine,
automatic pill press, pharmaceutical machinery china and etc. Want to know
automatic tablet making machine price or more, contact us.
