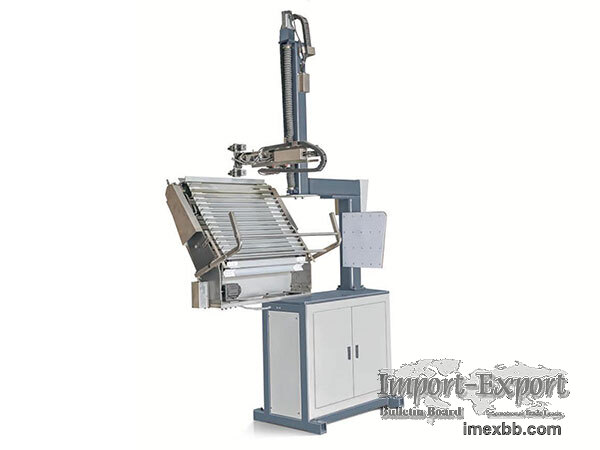

ZP65-40 18-head Vertical-to-horizontal Vial-making Machine

ZP65-40 18-head Vertical-to-horizontal Vial-making Machine

ZP65-40 is suitable for producing dia.40mm-65mm glass bottles. It's
particularly suitable for making glass milk bottle, big size glass water
bottles etc. It's the best choice to replace hand-made glass.

18-head Vertical-to-horizontal Vial-making Machine Technical Parameter

Item Unit Parameter
Number of Station Station 18 stations in Part-A
1 stations inPart-R
12 stations in Part-C
Efficiency PCS/hour 450-600
Size of Vial Outer Diameter mm Ф40-65
Height 60-180
Inner Diameter of Neck Ф12-35

Type
YR100L-6
Motor Power KW 1.5
Voltage V 380

Rotation r/min Adjustable
Machine Size mm 2400x1800x1700
Assemble Size mm 1030x830
Weight KG 2200
Air Pressure (only for referance) Gas Mpa 0.012
Natural Gas 0.012
Liquid Gas 0.05
Oxygen 0.014
Air 0.02
Consumption (only for referance) Gas m³/hour 2.5-3
Natural Gas m³/hour 1-1.2
Liquid Gas KG/hour 07-0.9
Oxygen m³/hour 5
Air m³/hour 6-9
