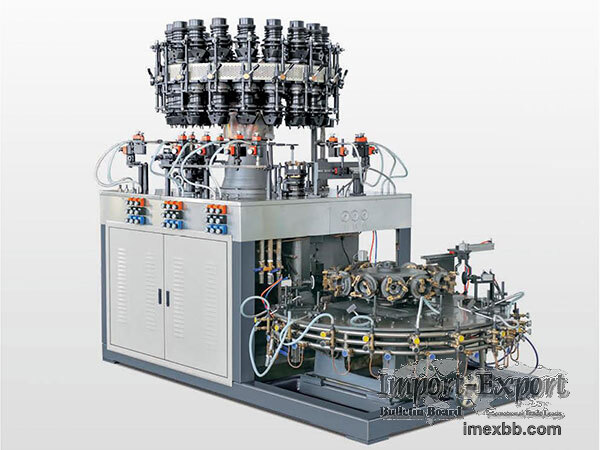

ZP30-32 12-head Double-chuck Vial-making Machine

ZP30-32 12-head Double-chuck Vial-making Machine

ZP30-32 is suitable for producing glass vials with dia.16mm-32mm. Part A
adopts double-chuck design. This design decreases the shakiness and increases
the stability of glass tubes, and improves the quality of glass vials.

ZP30-32 12-head Double-chuck Vial-making Machine Technical Parameter

Item Unit Parameter
Number of Station Station 12 stations in Part-A
6 stations in Part-B
Efficiency PCS/hour >1200
Size of Vial Outer Diameter mm Ф 16-32
Height 25-80
Inner Diameter of Neck Ф 6-20
Motor Type
GD200A1R5G-4
Power KW 0.75
Voltage V 380
Rotation r/min Adjustable
Machine Size mm 1600x1400x1600
Assemble Size mm 950 x 800
Weight KG 1100
Air Pressure (only for referance) Gas Mpa 0.012
Natural Gas 0.012
Liquid Gas 0.05
Oxygen 0.014
Air 0.02
Consumption (only for reference) Gas m³/hour 2.5-3
Natural Gas m³/hour 1-1.2
Liquid Gas KG/hour 0.7-0.9
Oxygen m³/hour 5
Air m³/hour 6-9
