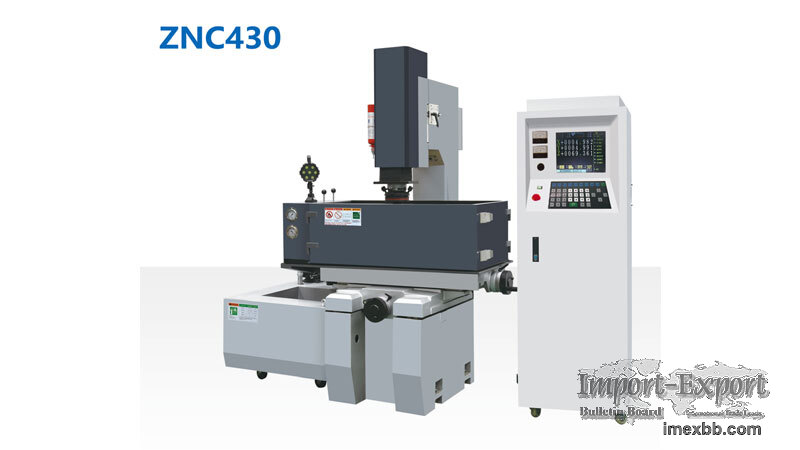

ZNC Die Sinking EDM Machine

ZNC EDM Sinker has X and Y-axis manual control, and Z-axis automatic control.
It can do one single job after manually set position, and job setting is also
manual. Ideal for molds and spare parts manufacturing industries, ZNC edm spark
erosion machine for sale by DMNC is your best choice for die sinking operation!
ZNC350 ZNC Spark Erosion Machine
ZNC430 ZNC Electrical Discharge Machine
ZNC450 Electrical Discharge Machining Machine
ZNC540 Electric Discharge Machining
ZNC600 ZNC spark edm machine
ZNC860 ZNC Die Sinking EDM With Heavy Load Capacity
ZNC Die Sinking EDM Spark Erosion Machine Highlights

Original Taiwan C-Tek controller, LCD monitor, Industrial Computer Controller
EDM sinker for sale

High accuracy X, Y, Z three axes C3 grade Taiwan-made ball screw.

Z-axis imported Japanese Sanyo servo motor control.

Three axes DROs of 0.005mm resolution.

Resin sand casting as machine body and inner stress removed to make sure long-
time rigidity and stability.

Z-axis is equipped with a high precision roller guideway with a Japanese SANYO
DC servo motor, to make the movement of the Z-axis more sensitive and smoother.

The znc machine has a wide machine base to make sure the machine is strong
enough for heavy loading, X. and Y axis have V shape and flat guideway with
FEFLON wear-resisting sticker, movement of heavy load is smooth and light, with
no crawling phenomenon.

Working lamps, fire extinguishers, and lubrication units, and patented
electrode holders are all Taiwan-made.

ZNC Die Sinking EDM Spark Erosion Machine Function Characteristic Introduction
of Control System

More than 20,000 units of programming storage capacity. Normally, more than
20,000 different programmings of mold or customer numbering can be stored

With a mirror surface processing circuit, a true mirror effect can be
performed. Furthermore, it is even better to use orbital processing and powder
mixing processing with the EDM spark erosion machine.

10 segments auto-editing function. ① Manual edit: edit machining condition by
experience. ②AUTO Z auto edit: Max. Depths, initial current and finished
process, machining area selection are provided, and then machining condition
edit can be finished automatically. ③ Intelligent condition edit electrode
shape, electrode and workpiece material, workpiece section area and finished
precision selection, depth setting area are provided, and then machining
condition can be complete at a time by the way of a rough→moderate→fine.

X, Y, Z-axis coordinate are switch with Metric and English system

If machining of the EDM CNC die sinking process is unstable, the discharging
condition is auto-adjusted by modifying discharging efficiency and working
time. After that, the condition will restore automatically. And it is also
adjustable at any time.

Auto arcing detecting function, if unsteady caused by arcing occurs, the
computer will adjust machining parameters and rise to jump up height, then the
normal condition would return.

If could set that after 2~10 times discharging (jumping up control), the
electrode will be raised (safe height Z) to the set arbitrary position and
continue machining the EDM spark erosion process. This could achieve good
slagging off performance for deep hole machining.

The function of avoiding second discharging and carbon deposition rapid raising
or discharging boundary searching rapid rising.

Power control (equal energy) function for homogenizing machining effect. And
this function could be switched off to accelerating graphite electrode
machining.

Generator new design conforms to a power supply box and 15-inch LCD display
criterion of European CE safety regulation, which is dustproof, waterproof,
electric noise-proof, and circuit board life could also be raised.

An industrial class PC-based controller is applied, and the traditional hard
disk is substituted by new DOM type memory, which enables faster and more
steadily speeds of file reading and it is more suitable for industry
application.

Up discharging (reverse machining) function makes special machining easier.

Two independent machining coordinates. The male die and female die could be
parted or machined in different coordinates.

After power off, the system restarts and automatically reloads the previous
machining condition and coordinate of last time, so discharging could be
finished by pushing the remote control box without panel operation

Two jumps up to speed type, which serve speed could be raised when no electrode
deformation and big area machining efficiency could also be raised.

Separately storage of coordinate and machining data and same machining
condition could be rapidly added in different part machining.

Two high voltage circuits could be set in partial voltage or partial current
according to the customer's need provided by die sinking machine suppliers

Arcing detection setting function could start the carbon deposition hardware
detecting circuit, and every charging pulse could be detected and the current
will be cut off when an abnormal pulse occurs. So no short circuit is caused by
a short circuit

Discharging high voltage pulse control, which enables the settings of different
high voltage pulse types and it could go with machining speed and electrode
wear.

ZNC EDM Spark Erosion Machine Die Sinking Operation & Process

The EDM spark erosion machine die-sinking process is usually used in the
production of molds and dies. A discharge occurs in the small gap between the
workpiece and the electrode, and the material is removed by melting or
vaporization. For the EDM spark erosion machine die-sinking process, the
electrode and the workpiece must be immersed in the dielectric fluid. The die-
sinking mold process starts with processing the graphite electrode to form the
"positive" of the required cavity. The electrode is then carefully inserted
into the workpiece, and when the feature closes the spark gap (the distance
required for the spark), a spark is generated on its surface.
Now the znc edm machine price if affordable and if ou want to buy our edm die
sinker product,please contact us.
