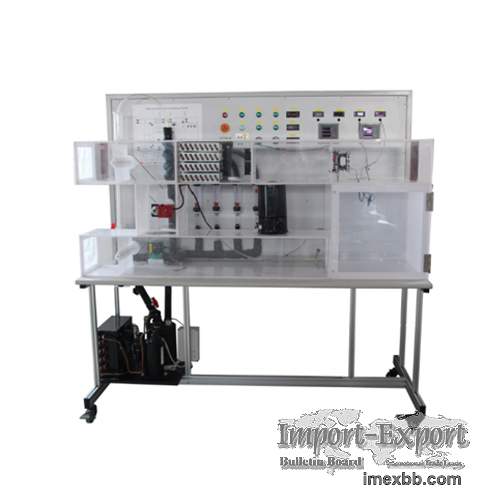

ZM6302 Test Benches For The Study Of Air Conditioning

Fonction (s)/Objectifs pédagogiques
Use of enthalpic air diagram
Characterization of humidification and dehydration phenomena in an air
conditioned environment
Description :
Autonomous unit, monoblock, mounted on mobile support frame, treated against
oxidation, PVC panel.
Digital display of temperatures from suitable probes for dry and wet
temperatures, paper output of results in the form of curves.
1 fan motor assembly, equipped with a manual speed controller .
1 conduct of blowing Including :
1 water vapour injector
1 electric heating battery, regulated temperature and adj
