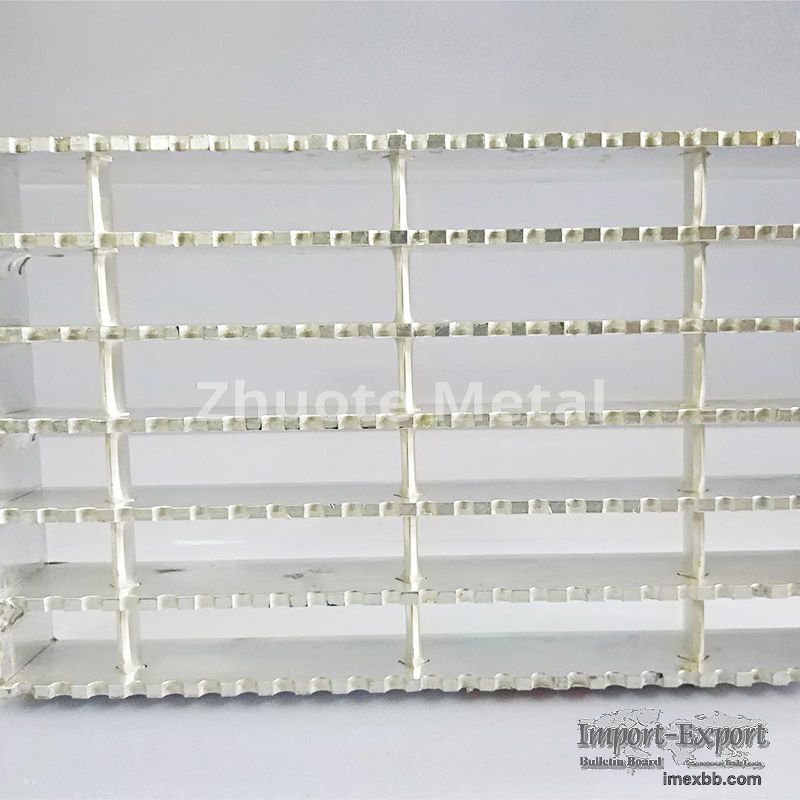

Zhuote Aluminum grating

Zhuote Aluminum grating
The biggest feature of aluminum grating is lightweight and high corrosion
resistant capacity, beautiful appearance. Usually aluminum gratings are used
for sewage and waste treatment plants, chemical process industry, off-shore
rigging drills, marine applications and more. It can be used for walkways,
mezzanine floors, pedestrian bridge walkways, stage flooring and more
Product Description

Aluminum grating is manufactured from ASTM B221, 6063, or 6061 alloy, aluminum
grating is available in four distinct products: type "SG" Swaged Rectangular
Bar, type "SGI" Swaged "I"-bar, type "SGF" Swaged Flush-Top, and type "ADT"
Dovetail Pressure Locked. All four products are available with bearing bar
spacing ranging from 19/16" (1-3/16") to 7/16" on center and with cross bars at
either 4" or 2" on center.

Aluminum grating are typically shipped "mill finish" with no additional
treatment. For architectural applications or highly corrosive environments,
supplemental anodizing, chemical cleaning, or powder coat finishes are
available.

• Mill finish (no finish)

• Anodized (clear, bronze, other)

• Powder coating

• Other

1. SG Aluminum grating

SG aluminum grating is made of aluminum plates and cross bars. It is
manufactured by inserting cross bars into pre-punched holes in the bearing bar.
The cross bars are then swaged forming a positive mechanical connection.
Bearing bars are available with standard plain or optional serrated or Algrip
surfaces. The cross bars are fully locked within the bearing bar, slightly
below the top surface.
2. SGI Aluminum grating

SGI aluminum grating is made of I style aluminum plates and cross bars.
Advantages include reduced weight per square foot and the striated flanges of
the "I"-bar provide enhanced skid resistance without the added cost of
serration.
3. SGF Aluminum grating

SGF Swaged aluminum grating is flush-Top aluminum grating. Manufactured with a
unique, extruded cross bar that is flush with the top surface of the bearing
bars, type "SGF" aluminum grating provides an enhanced walking surface for
areas subject to continuous pedestrian traffic.
4. DT style aluminum grating

DT style aluminum gratings are manufactured T bar aluminum plate, have deep
rectangular cross bars and are manufactured by inserting pre-punched bearing
bars and cross bars into an interlocking configuration and deforming the cross
bars under intense hydraulic pressure.
Zhuote aluminum bar grating Advantages:

Non-toxic

Lightweight

Resilient & durable

Corrosion resistant

High strength-to-weight ratio

Can be fabricated and customized

Easily recycled & versatile

Minimum Order: 50 square metres
