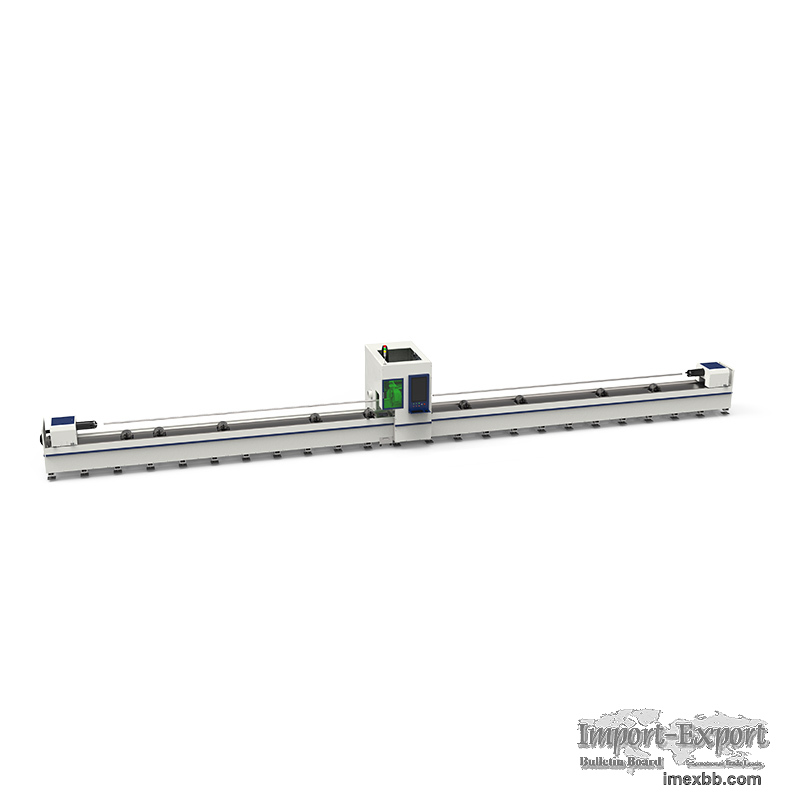

Zero Tailing 3 Chuck Fiber Laser Tube Cutting Machine

The Three-chuck Fiber Laser Tube Cutting Machine utilizes a three-card
linkage system and dual pneumatic clamping to achieve simultaneous step-up and
segmented feeding cutting. This feature allows for zero tail cutting, thereby
improving material utilization. This professional pipe cutting equipment is
available in power options ranging from 1000 to 6000 watts. Additionally, the
machine can be equipped with an optional loading and unloading device.
This cutting machine ensures superior cutting quality, stability, and
precision. It delivers fine cuts with smooth edges, eliminating deformation and
burrs. These features make it suitable for meeting the cutting requirements of
various users.
Features:
1. The bed adopts welded structure, which is rough machined after annealing,
then subjected to vibration aging treatment, and then finished, which can
completely eliminate the stress of welding and processing, with good rigidity,
high precision, and can be used without deformation for a long time;
2. The front and rear adopt double pneumatic chuck clamping design, and the
rear chuck is equipped with an air blowing device to reduce the slag attached
to the pipe wall during the cutting process. The clamping strength can be
adjusted arbitrarily, and different strengths can bear different loads, so as
to avoid the deformation of the thin pipe clamp and the loose clamp of the
thick pipe.
3. The humanized design of the whole machine makes the best use of raw
materials while improving the cutting efficiency, reduces production costs, and
achieves "0" tailings.
4. It adopts a laser cutting machine-specific bus CNC system based on Windows
operating system. This series of systems is a laser cutting machine-specific
CNC system. It integrates a variety of laser cutting control dedicated function
modules, with powerful functions and easy operation;Combined with the tube
nesting software TubesT, it can achieve co-edge cutting, saving time and
materials.
5. The cutting head adopts capacitive sensor, which has high sensing precision,
sensitive response, stable and reliable performance; no manual focus is
required, and the software automatically adjusts the focusing mirror to realize
automatic perforation and cutting of plates with different thicknesses.
Automatically adjusting the focus lens is ten times faster than manual
adjustment.
