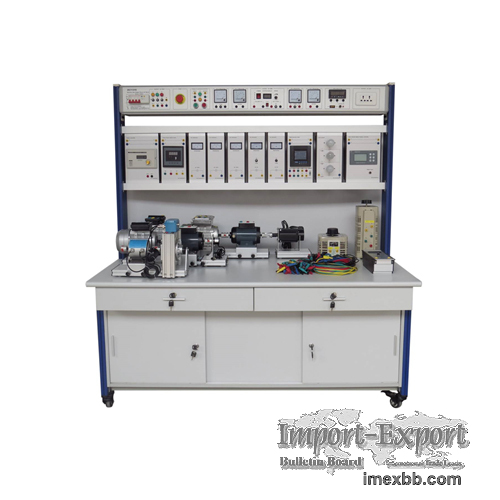

ZE3125S Single Phase AC Motor Training Workbench

I. Product
1.1 Overview
This training device includes a variety of types of single-phase ac motors and
industrial control components, through the relevant experiment, can be familiar
with the operation of the single-phase ac motor characteristics, and the use of
a variety of industrial control components method, grasp its control principle
and control mode, the corresponding knowledge and skills, suits, higher
vocational colleges, secondary vocational schools and vocational school related
professional teaching and skills training examination.
1.2 Feature
(1) the practical training platform adopts the aluminum profile column frame
structure, which is simple and generous. The bottom is equipped with a
universal wheel, which can be moved flexibly and can be adjusted independently
according to the ground conditions. The measuring instrument and the actual
training power supply adopt the built-in integrated mount box type
installation, easy to use, not easy to damage.
(2) various types of single-phase ac motors are fully configured and can be
used in combination.
(3) the combination of software and hardware can accomplish a variety of
practical training contents.
(4) the training platform has a good safety protection system.
2 Character parameter
(1) input power: three-phase five-wire system 380V plus or minus 10% 60Hz.
(2) external dimension: 1600mm * 800mm * 1800mm.
(3) machine capacity: < 2KVA.
(4) weight: < 320kg.
(5) working conditions: ambient temperature -10 ~ +40 relative humidity < 85%
(25℃)
3.Product Consist of
3.1   Power control panel
The practical training table is supported by the aluminum profile column, and
the bottom is equipped with a universal wheel, which can be moved flexibly and
can be adjusted independently according to the ground conditions. The desktop
adopts 25mm thick high density substrate, the surface high temperature and high
pressure fire prevention board surface treatment, the structure is firm, the
whole is simple and generous.
3.3 Equipped module
(1) single-phase voltage regulator module.
(2)Three-phase auto-voltage regulator module.
(3) torque speed transmitter, magnetic powder brake module.
(4) rotary encoder module.
(6)The brake controller is mounted (ZE3125S-module-1). 1 piece
(7) Intelligent display instrument hanger box(ZE3125S-module-2)1 piece
(8)Digital display three - phase multi-function liquid crystal instrument
hanging box.(ZE3125S-module-3)1 piece
(9) AC voltmeter hanging box(ZE3125S-module-4-1, module-4-2, module-4-3)each
is 1 piece
(10) AC current meter hanging box(module-10-1, module-10-2)each is 1 piece
(11) Lamp hanger(ZE3125S-module-6)1 piece
(12) Power factor phase meter hanging box(ZE3125S-module-7)1 piece
(13)The motor module
(14)English Software for motor or generator training
