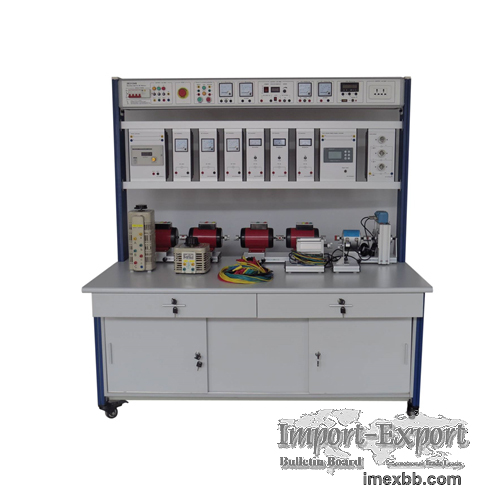

ZE3124S DC Generator Training Workbench

I. Product
1.1 Overview
This training device includes a variety of types of DC motor and industrial
control components, through the relevant experiment, can be familiar with the
operation of the DC motor features and the use of a variety of industrial
control components method, grasp its control principle and control mode, the
corresponding knowledge and skills, suits, higher vocational colleges,
secondary vocational schools and vocational school related professional
teaching and skills training examination.
1.2 Feature
(1) the practical training platform adopts the aluminum profile column frame
structure, which is simple and generous. The bottom is equipped with a
universal wheel, which can be moved flexibly and can be adjusted independently
according to the ground conditions. The measuring instrument and the actual
training power supply adopt the built-in integrated mount box type
installation, easy to use, not easy to damage.
(2) various types of DC motor are fully configured and can be used in
combination.
(3) the combination of software and hardware can accomplish a variety of
practical training contents.
(4) the training platform has a good safety protection system
2 Character parameter
(1) input power: three-phase five-wire system 380V plus or minus 10% 60Hz.
(2) external dimension: 1600mm * 800mm * 1800mm.
(3) machine capacity: < 2KVA.
(4) weight: < 290kg.
(5) working conditions: temperature - 10 ℃ ~ + 40 ℃ relative humidity < 85%
(25 ℃)
3.Product Consist of
3.1   Training workbench
The practical training table is supported by the aluminum profile column, and
the bottom is equipped with a universal wheel, which can be moved flexibly and
can be adjusted independently according to the ground conditions. The desktop
adopts 25mm thick high density substrate, the surface high temperature and high
pressure fire prevention board surface treatment, the structure is firm, the
whole is simple and generous.
3.2 Equipped modules
(1) single-phase voltage regulator module.
(2) three-phase automatic voltage regulator module.
(3) torque speed transmitter, magnetic powder brake module.
(4)Rotary encoder module
(5)brake controller hanging box(ZE3124S-module-1)1 piece
(6)Intelligent display table hanging box (ZE3124S-module-2)1 piece
(7)DC voltmeter hanging box (ZE3124S-module-4-1，ZE3124S-module-4-2，ZE3124S , -
module-4-3)1 piece for each
(8)DC ammeter hanging box (ZE3124S-module-5-1，ZE3124S-module-5-2，ZE3124S , -
module-5-3)1 piece for each
(9)Lamp load hanging box (ZE3124S-module-6)1 piece
(10)Motor module
(11)English Software for motor or generator training

Minimum Order: 1 sets

Click to Enlarge
