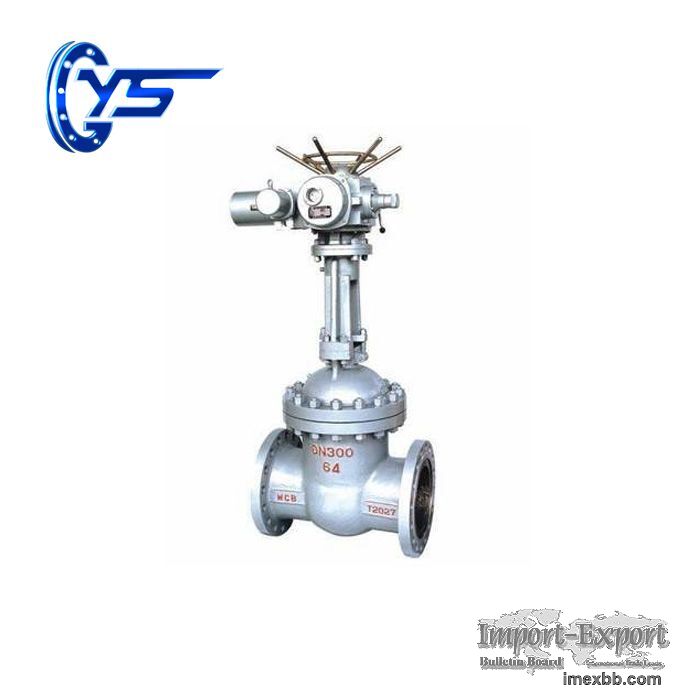

Z941H-16C / 25 DN 50-1000mm cast steel electric gate valve

Z941H-16C / 25 DN 50-1000mm cast steel electric gate valve Brass Gate Valve
for sale
Material: WCB
Medium temperature: -29-425 ℃
Operation mode: electric
Medium: water, steam, oil, etc.
Caliber: DN50-1000
Valve Type: Gate Valve
Connection method: flange / welding
Body material: WCB
Working pressure: 1.6-6.4Mpa
This product is suitable for all kinds of pipes that are fully open and fully
closed, not for throttling.
GOST SERIES Details
Outer dimensions and connection dimensions of cast steel electric gate valves
model Nominal diameter
(mm) Size (mm)
L D D1 D2 bf z-φd H
Z941H-16C 50 250 160 125 100 16-3 4 * Φ18
310
65 265 180 145 120 18-3 4 * Φ18 373
80 280 195 160 135 20-3 8 * Φ18 435
100 300 215 180 155 20-3 8 * Φ18 445
125 325 245 210 185 22-3 8 * Φ18 570
150 350 280 240 210 24-3 8 * Φ23 630
200 400 335 295 265 26-3 12 * Φ23 735
250 450 405 355 320 30-3 12 * Φ25 969
300 500 460 410 375 30-4 12 * Φ25 976
350 550 520 470 435 34-4 16 * Φ25 1120
400 600 580 525 485 36-4 16 * Φ30 1452
450 650 640 585 545 40-4 20 * Φ30 1541
500 700 705 650 608 44-4 20 * Φ34 1880
600 800 840 770 718 48-5 20 * Φ36 1874
700 900 910 840 788 50-5 24 * Φ41 2083
800 1000 1020 950 898 52-5 24 * Φ41 2400
900 1100 1120 1050 998 54-5 28 * Φ41 2950
1000 1200 1255 1170 1110 56-5 28 * Φ48 3245

Material of main parts of cast steel electric gate valve
Part Name material
Body / bonnet WCB
gate WCB
Valve stem WCB / 2cr13
Stem nut Ductile iron / brass

Performance specifications of cast steel electric gate valve
model Nominal pressure
(mpa) Test pressure (mpa) proper temperature Applicable medium
Strength (water) Sealed (water)
Z941H-16C 1.6 2.4 1.76 —29—425 ° C Water, steam, oil, etc.
Z941H-25C 2.5 3.8 2.8
Tips:
1.Compact structure, reasonable design, good valve rigidity, smooth passage.
2.The use of flexible graphite packing, reliable sealing, light and flexible
operation

industrial gate valve Applications:
Industrial applications: Petrol , eum, Chemical, Paper Making, Fertilizer, C
oal Mining,Water treatment and etc.

, slurry gate knife gate valve Advantages:

1.We have Sand or Precision casting technology,So we can as your drawing design
and production.
2.Customers' logos are available cast on the valve body.
3. All our casting with tempering procedure before Processing.
4. Use the CNC lathe during whole process.
5. The disc sealing surface use plasma welding machine welding.
6. Every valve must be tested before delivery from the factory, only qualified
ones can be shipped.
7.The kind valve we usually use Wooden cases to package, We also can according
to specific customer's requests.

Company Advantages:
1.We are manufacturer Since 1992.
2.CE,API,ISO approved.
3.Fast delivery.
4.Low price with high quality.
5.Professional work Team!

We can design and produce various standard Valve. Standards such as GB, JB, US
API, ANSI, British BS, German DIN, Japanese JIS, GOST, GOST series Valve are
our main products.
