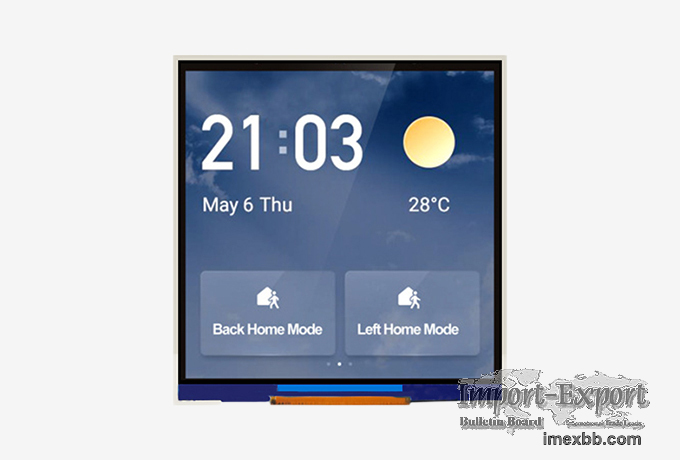

Z101017 HD 7 Inch TFT LCD 1200*1920 QVGA MIPI Interface OTA7290B Controller

Size: 10.1 inch

Resolution: 1200*1920

Active Area: 135.36*216.58mm

Interface: MIPI

View Angle: IPS

Brightness: 400 cd/m²

Touch Panel: Support CTP/RTP

Supply Type: Factory/Manufacturer

Certification: ISO9001, IATF16949, ROHS, REACH

Overview of Z101017 HD 7 Inch TFT LCD 1200*1920 QVGA MIPI Interface OTA7290B
Controller

1
Z101017 is a color active matrix thin film transistor (TFT) liquid crystal
display (LCD) with 1200*1920 resolution. IPS (In-plane Switching) technique
make this 10.1" LCD module have a wider view angle. This LCD display is built-
in OTA7290B driver IC. This a-Si TFT LCD module come with MIPI interface,
400cd/m² brightness.

2
If you have special requirements, like drive IC, interface, FPC, touch panel,
brightness, color, backlight, touch panel, etc, we can also customize for you.

3
Our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard
system strictly, all the LCD display passed ROHS, REACH Certification.

4
The 10.1 inch TFT LCD is widely used in Medical, visual doorbell, vending,
learning mechine, ventilator, oscilloscope, kitchen, household appliance, smart
home, industry, handheld, outdoor, E-bike, Vehicle, projector, 3D printer,
audio device, robot, electric scale, navigation, dashboard, elevator
advertising, laptop, HMI, education, etc.
Specifications of HD 7 Inch TFT LCD 1200*1920 QVGA MIPI Interface OTA7290B
Controller

Item Main Display Unit
Number of Pixels 1200 * RGB * 1920 Pixel
LCM Outline Dimension 143.10 (W) * 228.60 (H) * 2.6 (T) mm
LCD Outline Dimension 140.40 (W) * 225.35 (H) * 0.8 (T） mm
Active Area 135.36 x 216.58 mm
Pixel Pitch 37.6 x 112.8 um
Display Mode Normal Black
Pixel Arrangement RGB-stripe
Viewing Direction FREE
Color Configuration RGB
LCD Transmittance Typ: 4.04%; Min: 3.53%
LCD Contrast Ratio Typ: 1000; Min: 800
FPC Version Z101017-P31F V1
Interface MIPI
Operating Temperature -10℃ ~ 60℃
Storage Temperature -20℃ ~ 70℃
Backlight arrangement LED / 4 series 7 parallel
Luminance -
Weight -

As a professional lcd display company, Zhunyi has high-quality china lcd module
for sale. Welcome to contact us if needed.

Minimum Order: 1 pieces
