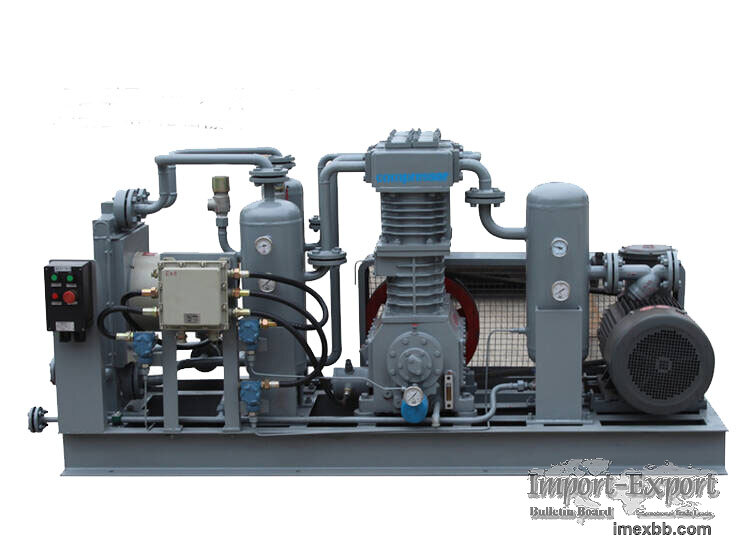

Z-type BOG Compressor

Bengbu Aipu Compressor Manufacturing Co., Ltd. is a professional reciprocating
natural gas compressor manufacturers from China. Our main products include BOG
compressors, LPG compressors, CNG compressors, recycle gas
compressor,reciprocating gas compressor,oil and gas compressor,and natural gas
compressor for CNG/LNG tank trucks, CNG filling station, LNG filling station,
LNG gasification station, L-CNG filling station, LNG storage station, LNG peak
regulation station, LNG receiving station, LPG filling station, chemical plant,
oil and gas plant, etc.

The outstanding advantage of the Z-type vertical reciprocating compressor is
the small floor space, and its balance of inertia force can reach the best
level. The cylinder centerline is perpendicular to the ground, so the cylinder
does not bear the gravity of the piston assembly. The lubricating oil can be
evenly distributed along the cylinder wall. Our Z-type boil off gas compressor
has the characteristics of minimum wear and uniform distribution, good gas
sealing conditions, and the long working life of cylinder and airtight element.

Z-type BOG Compressor Features
Designed for specific processes, stable operation and high reliability.

Compact structure, small footprint, easy installation and simple bog compressor
operation.

Flexible load adjustment, wide gas intake range and wide application range.

The overall skid-mounted design, low noise, easy to install in urban areas.

High boil off gas recovery system efficiency, low operation and maintenance
costs.

Z-type BOG Compressor Application
BOG compressor is also known as BOG recondenser or boil off gas recondenser. It
is mainly applied to LNG operating companies including LNG filling station, L-
CNG filling station, LNG gasification station and others.

Technical Parameters and Specifications of Z-type BOG Compressor
Model Capacity (Nm3/h) Inlet pressure (Mpa) Outlet pressure (Mpa)
Motor power (KW) Outline measurement (mm)
ZW-3.8/(0.2~0.5)-3.5 260 0.02~0.05 0.35 22 2500*1300*1800
ZW-3.5/(0.2~3)-3.5 450 0.02~0.3 0.35 22 2500*1300*1800
ZW-3.5/(0.2~5)-3.5 630 0.02~0.5 0.35 22 2500*1300*1800
ZF-0.45/(1.5~4.5)-250 100 0.15-0.45 25 30 2150*1800*2000
ZF-0.55/(1.5~4.5)-250 120 0.15-0.45 25 37 2150*1800*2000
ZF-0.65/(1.5~4.5)-250 150 0.15-0.45 25 45 2150*1800*2000
ZH-0.45/(1.5~4.5)-250 100 0.15-0.45 25 30 2150*1800*2000
ZH-0.55/(1.5~4.5)-250 120 0.15-0.45 25 37 2150*1800*2000
ZH-0.45/(1.5~4.5)-250 120 0.15-0.45 25 30 2150*1800*2000
ZH-0.55/(1.5~4.5)-250 150 0.15-0.45 25 37 2150*1800*2000
ZH-0.65/(1.5~4.5)-250 200 0.15-0.45 25 45 2150*1800*2000
ZF-0.15/(8~11)-220 100 0.8-1.1 22 22 1600*1800*1800
ZF-0.25/(8~11)-220 150 0.8-1.1 22 37 1800*2000*2000
ZF-0.55/(8~11)-220 200 0.8-1.1 22 45 1800*2000*2000
ZW-1.5/(1~4)-6 200 0.1-0.4 0.6 15 1400*1400*1500
ZW-2.0/(1~4)-6 400 0.1-0.4 0.6 22 1400*1400*1500
ZW-3.0/(1~4)-6 600 0.1-0.4 0.6 30 1600*1600*1600

We also provide boil off gas recondenser and bog recondenser for sale,if you
want buy one,please contact us freely.

Minimum Order: 5 sets
