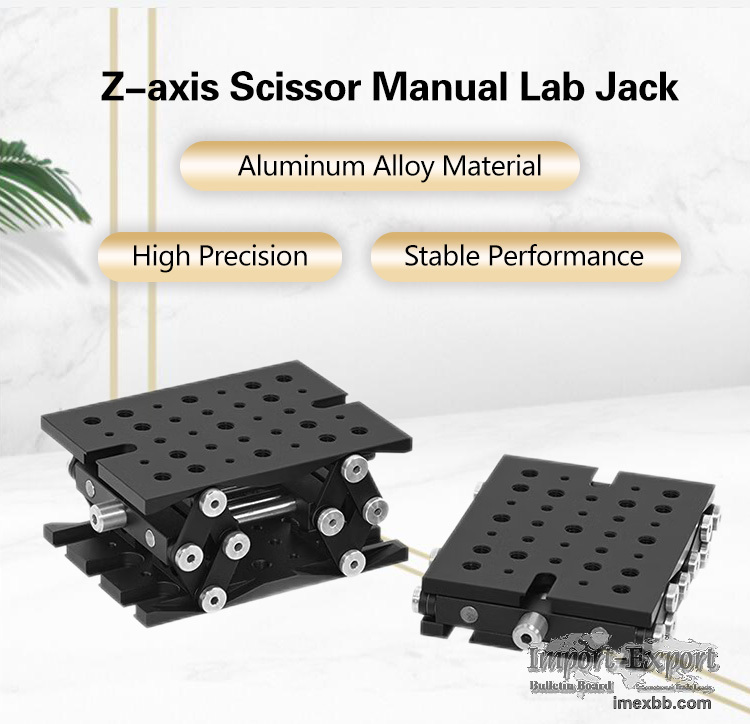

Z Axis Scissor Manual Lab Jack Laboratory Fine Tuning Lifting Stage

Specification:
Model Number

PT-SD415

Platform Size

101.6*76.2mm

Platform Height

21.3mm~46.8mm

Travel Range

25mm

Load Capacity

55.1 lbs (25kg)

Weight

425.2g

Material ,

7075 Aluminum Alloy
PT-SD415 manual lab jack is very suitable for installing opto mechanical sub
assemblies that need height adjustment. It has a rigid scissor design, high
stability and good parallelism. The adjusting device uses a lead screw to drive
the vertical movement. The lead screw movement is 0.8mm per revolution, which
can provide 25mm height lifting adjustment, and can support a vertical load of
up to 50lbs.
The installation table top is 101 * 76.2mm, and the top plate and bottom plate
table top are arranged with a variety of threaded holes, with installation
slots.

Top plate mounting holes: 10 M3, 8 M4, 15 M6, 2 6.7 * 19.2mm;

Bottom plate mounting holes: 10 M3, 8 M4, 11 M6, 6 6.7 * 19.2mm;

Minimum Order: 1 pieces
