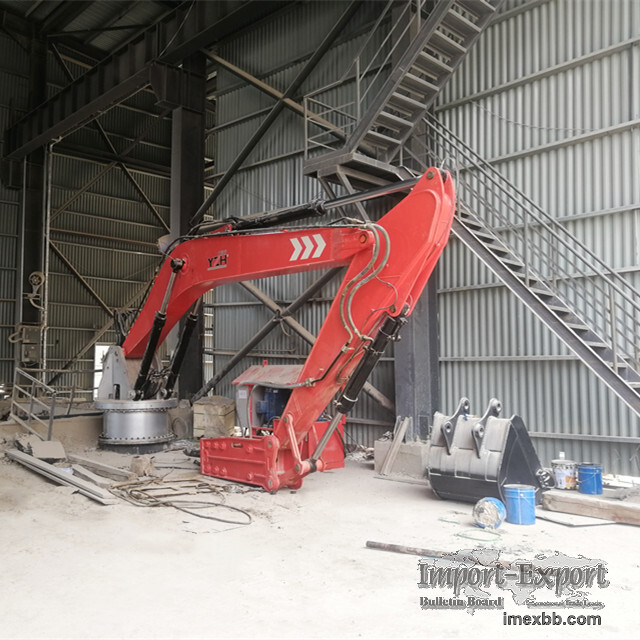

YZH Stationary Rockbreaker Booms

YZH Stationary Rockbreaker Booms

Shandong Yuanzhengxinghang Machinery Equipment Co., Ltd. specializes in the
research, development and production of stationary rockbreaker booms, and its
products are widely used in mining, metallurgy, sand and gravel aggregate
processing and other fields.

Main Features

1. Modular and high strength design

The arm consists of hydraulic pump station, rotary support system, big arm
and small arm, hydraulic breaker and controller, etc. It supports quick
replacement of breaker, bucket, hydraulic drill and other tool heads to meet
diversified operational requirements.

It adopts high-strength manganese steel welded structure with strong impact
resistance, and the internal buffer plate is set up to withstand heavy loads to
ensure stable operation under adverse working conditions.

2. Intelligent control and flexibility

It supports three operation modes: closed cab, wired or wireless remote
control, and 5G light remote control system, which makes the operation precise
and convenient.

With the ability of multi degree of freedom movement, it can realize accurate
positioning and operation in complex space.

3. Energy saving, environmental protection and high efficiency power

Adopting 380V/50Hz motor drive, the energy cost is more than 75% lower than
the traditional diesel equipment, and the operation noise is low, which is in
line with the environmental protection requirements.

The core components of the hydraulic system (such as constant pressure
variable pump, proportional valve) are mostly imported from Germany, combined
with the load feedback technology to realize high energy efficiency and stable
output.

4. Adaptability and expandability

The length of working arm can be customized (from 1m to 20m), and it supports
two types of installation: rotary support type (H-type) and steering cylinder
type (Z-type), which can be adapted to different space constraints.

Equipped with quick couplings, the tool head can be flexibly replaced to meet
a variety of tasks such as crushing, slag clearing, clamping and so on.



Typical Application Scenarios

1. Mining and quarry

Dealing with crusher inlet blockage, clearing the “tiger mouth” of open-pit
mines or underground mines, and improving the efficiency of ore transfer.

2. Metallurgy and Foundry

Cleaning of metallurgical slag, removal of ladle liners, and disposal of
large metal residues in foundries.

3. Sand and Aggregate Processing

Assist in handling oversized boulders alongside crushing plants or mobile
crushers to optimize the aggregate production process.


Core Advantages

1. Safety Improvement

Remote control function reduces workers' exposure to high-risk environments
and reduces the risk of accidents, especially for underground or high-
temperature operation scenarios.

2. Remarkable economic benefits

Although the initial investment is high, the long-term operation can reduce
labor costs, maintenance costs and energy consumption expenses, the overall
cost-effective than traditional blasting or manual cleaning.

3. multiply production efficiency

A single machine can replace more than one person, processing hard rock (such
as granite, limestone) to improve efficiency, shorten downtime, to ensure
continuous production.

4. Environmental protection and sustainability

Electric drive reduces carbon emissions, low noise design improves the
working environment, in line with the development of green mines.

Minimum Order: 1 sets
