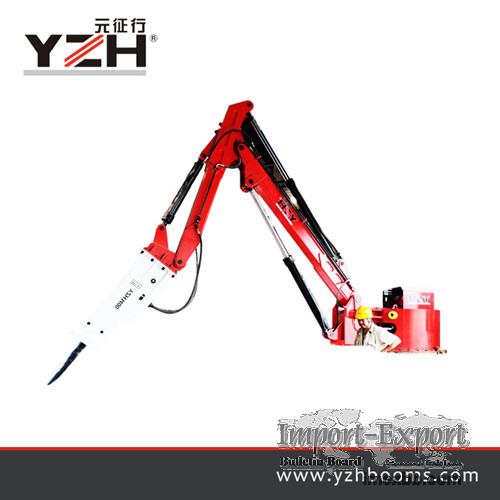

YZH Rock breaker boom system

Gyratory Crusher Rockbreaker Applications:
Big jobs need big booms and breakers. YZH’s wide range of gyratory booms allow
full breaker coverage within the rock box and mouth of the Crusher. YZH’s
complete line of large hammers are designed specifically for gyratories to
quickly eliminate any bridging or clogging, restoring consistent material flow
to the crusher.
The gyratory crusher is the mainstay of medium to large duty crushing plants.
Typically material is brought to the crusher by large haulage trucks and dumped
into a rock box. The gyratory crusher is located at the bottom of the rock box.
Material is crushed between the eccentrically mounted rotating crushing cone
and the fixed, tapered crushing throat.
The Rockbreaker is typically mounted in-line with the upper support of the
rotating cone called the spider. This provides superior maneuverability of the
Rockbreaker within the gyratory throat. The boom is typically sized to allow
full range of motion over the working range of the rock box. The reach should
be deep enough to allow the breaker to enter the gyratory for material breaking
and concave removal applications.

Minimum Order: 1 sets
