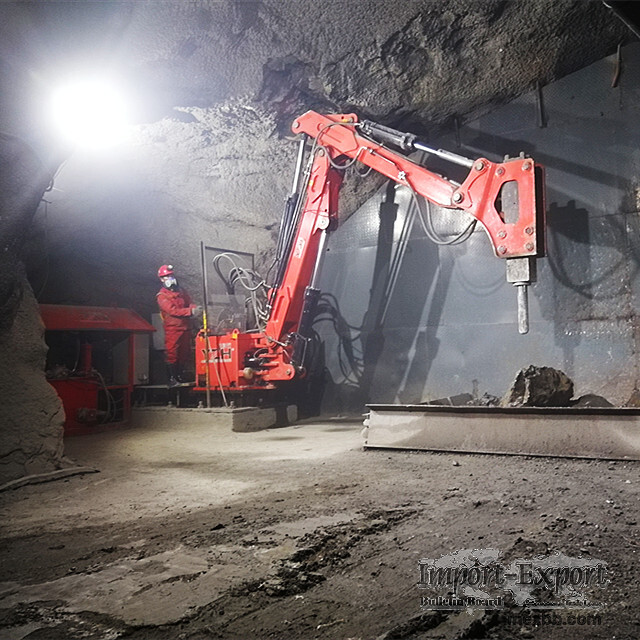

YZH Pedestal Rockbreaker Boom System

The working principle of the pedestal rock breaker boom system:

A pedestal rock breaker boom system uses a hydraulic hammer as a crushing tool
to convert hydraulic energy into mechanical energy by changing the oil circuit,
causing the piston rod to move up and down at high speed, and then hammering
the drill rod. The drill rod floats inside the body of the hydraulic hammer,
and the tip of the drill rod points towards the crushed material - ore. In this
way, the ore is crushed by the impact force of the hammer head and drill rod,
completing the crushing task. In order to quickly capture the force point and
impact direction of the broken object. By using a planar variable amplitude
mechanism consisting of a large arm, two arms, crank, connecting rod, and
rotating hammer, as well as a rotary mechanism, a hammer with five degrees of
freedom is formed, which can quickly capture the striking object, striking
point, and striking direction in three degrees of space. This planar mechanism
can greatly improve the efficiency of crushing work.

Minimum Order: 1 sets
