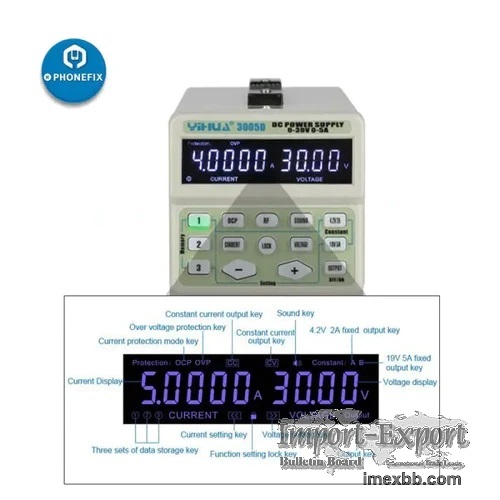

YIHUA 3005D 5A 30V Adjustable Digital DC Power Supply

YIHUA 150W 3005D 5A 30V regulated adjustable DC power supply, YiHua 3005D
LCD digital display DC power supply, 220V / 110V adjustable digital display
DC power supply for phone motherboard soldering repair, high-accuracy multi-
functional switching regulated DC power supply for mobile phone logic board
repair. Digitally adjusts current and voltage, which is more stable, and has
longer life than traditional potentiometer adjusters.

YIHUA 3005D 30V 5A Regulated Adjustable DC Power Supply 220V / 110V

YIHUA 3005D is the second generation of digital program-controlled switching
power supply, it used the latest technology and crafts,the weight is very
light, it is 50% lighter than the traditional DC power supply, it good for
transportation and save the shipping fee, it also effectively avoid too
heavy damage the product occur during transport.

Features :
Digital program-controlled stabilized switching power supply is designed for
use in laboratories, schools, production lines, and electronic repair.
Small size and is lightweight, which is very easy to transport and carry.
High efficiency, high load capacity, and low noise and is superior to linear
power supplies.
High voltage stability, small ripple factor, excellent short circuit
protection, and over-current protection.
Digitally adjusts current and voltage, which is more advanced, more stable,
and has longer life than traditional potentiometer adjusters.
Output electronic protector switch, which can easily break the output
load.Function set lock that can effectively prevent change of output
parameters or change caused by misuse, which makes the product more secure
and reliable.
Mobile phone radio-frequency detection function, which is of a 4.2V 2A/19V
5A fixed output function. Parameters can be displayed by pressing the key,
which is fast and convenient. It is an essential tool for cell phone and
laptop repair.
Three storage memories that can store three sets of frequently used
parameters for easy retrieval.
Output state memory function. When the memory switch is turned on,it can
retain the output status before the power switch is turned off. For example,
when the power is in the output state, turn off the power switch, and when
the power switch is turned on the next time the power supply will directly
output the voltage. When the memory switch is turned off, it will not retain
the output state when the power switch is turned off. Every time the power
switch is turned on, the output key must be pressed to output voltage.

Specification :
Output Power: 150W
Export voltage: Continuously adjustable from 0 to 30V (resolution is 0.01V)
Voltage export accuracy: ±0.02V
Recovery time: 100uS
Constant current value : 0~5A
Constant output current : Continuously adjustable from 0 to 5A (resolution
is 0. 0001A)
OCP current value: 0-5A Accuracy: ±0.01A
Signal test frequency range: 30~1800MHZ including cell phone signal test

Package includes :
1pcs x YiHua DC Power Supply

Minimum Order: 1 pieces
