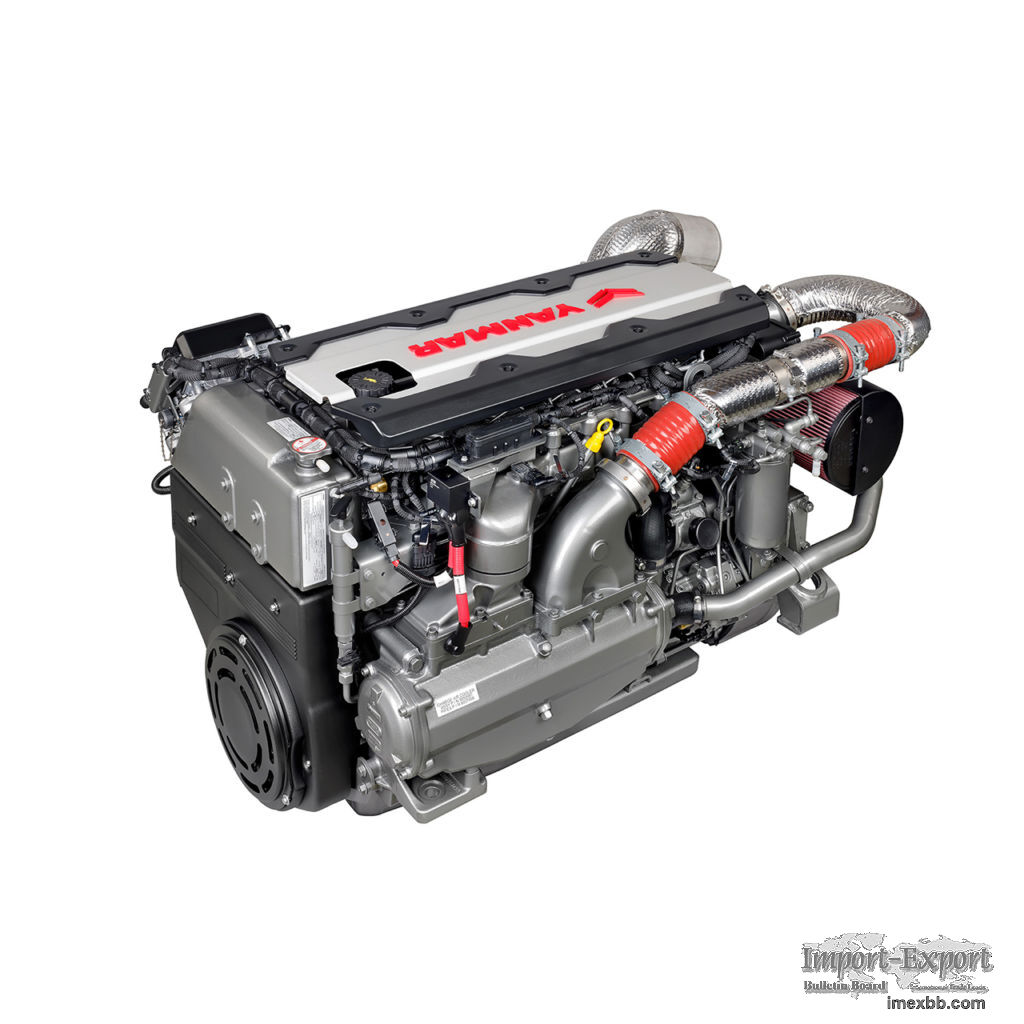

Yanmar 6LF485 485HP Marine Engine Inboard Diesel Engine

Rated Output
356 kW / 485 mhp
Rated Speed
3000 rpm
Displacement
6.728 L / 411 cu. in
No. of cylinders
6 cylinders
Cylinder Bore x Stroke
104 mm x 132 mm / 4.10 in x 5.20 in
Configuration
In-line, 4-stroke, vertical, water-cooled diesel engine
Combustion system
Direct Injection, Bosch Common Rail System
Aspiration
Turbocharged & Intercooled
Alternator
12V - 90A, 24V - 70A
Dry weight without gear
780 kg / 1720 lbs
Dimensions
1519 mm x 893 mm x 881 mm
Controls
Electronic

Minimum Order: 1 sets
