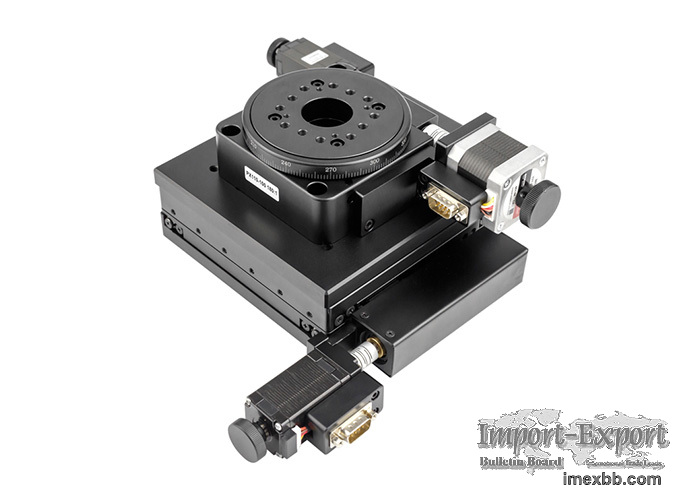

XYR Motorized Three-axis Stage Precision XY Linear Stage Rotation Stage

Specification:
This motorized three-dimensional stage is composed of XY axis motorized moving
stage PT-XY50 and motorized rotating stage PX110-100.



Product details:
Motorized integral combination stage: PT-XY50

Product features:

※ stepper motor is equipped as standard, which can be automatically controlled
by the company's motion controller.

※ the product is small and light in structure, which is suitable for use under
light load and low speed, as well as in scientific experiments.

※ high quality fine grinding lead screw drive, small lead, the same fine
fraction can achieve high resolution.

※ the ingenious structural design of air elimination check nut can minimize
the clearance of grinding lead screw pair.

※ the precision square guide rail is comfortable to move, and has the function
of laterally adjusting the guide rail preload and eliminating clearance. It can
be used in multi-dimensional combination.

※ the fine grinding of the bottom plate of the electric moving table and the
reasonable fixing mode of the guide rail greatly reduce the pitch and yaw of
the electric moving table, and greatly improve the straightness and parallelism
of the movement.



Model Number

PT-XY50

Structure

X,Y Axis Travel

50 Mm

Platform Size

155×155mm

Screw Specification

Self Machining Screw Pair

Guide

Advanced Cross Roller Guide

Stepping Motor (Step Angle)

Domestic Ordinary 28 (1.8 °) Motor

Material

Aluminium Alloy

Surface Prepartion

Black-Anodized

Load Capacity(Kg)

10

Weight(Kg)

3. , 2

Accuracy

Resolving Power

5μm(No Subdivision),0.625μm (8 Subdivisions)

Velocity

6mm /Sec

Repeat Positioning Accuracy

40μm

Absolute Positioning Accuracy

50μm

Straightness

5 , μm

Motion Parallelism

15μm

Pitching

50 , ″

Yawing

25″

Return Clearance

2μm

Lose Step

2μm

Accessory

Installin , g Grating Ruler (Optional)

Reloading Servo Motor (Optional)

Minimum Order: 1 pieces
