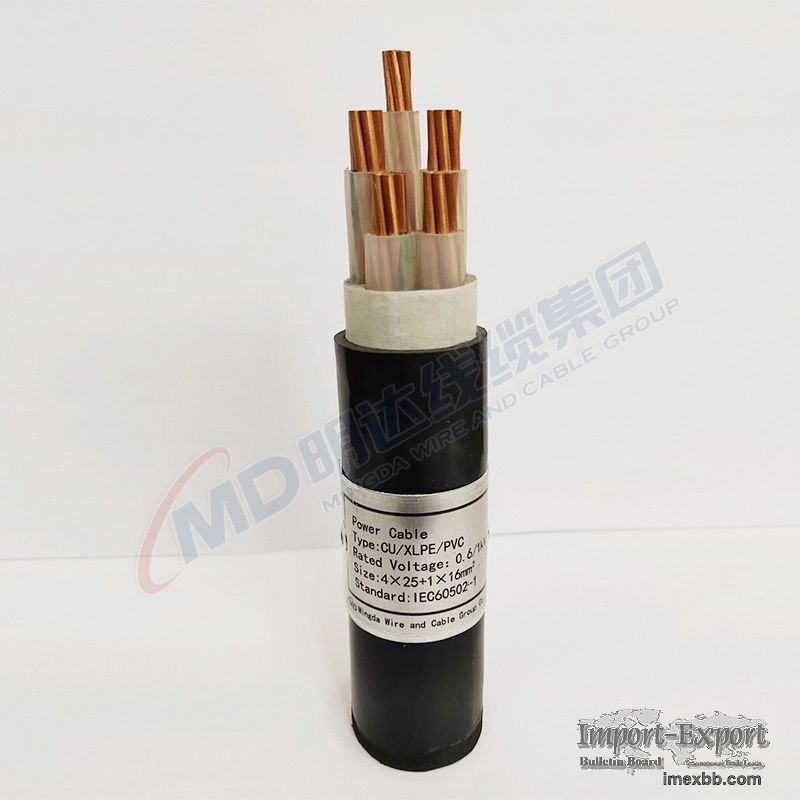

XLPE Insulated Power Cable

XLPE Insulated Power Cable
Product Description
Application : This product is suitable for transmission and distribution
system at the voltage from LV to MV. The power cables can be flame retardant
when used as type ZR.
Installation Temperature : The installation temperature should be over 0C . If
the ambient temperature is lower than 0C,the cable should be preheated.
Operating Temperature : Max permissible continuous operating temperature of
conductor shall not exceed 90C .
Conductor Short-circuit Temperature : Max temperature at short-circuit shall
not exceed 250C . The short-circuit duration shall not exceed 5 seconds.
Bending Radius: 20( d+D) +/-5% for single core cable,15( d+D )+/-5% for multi-
core cable.
D=Actual outer diameter of cable (mm),d=Actual diameter of the conductor (mm)
Standard: IEC60502, GB/T12706 or other standard required by customer. The
requirements for flame retardant property is according to IEC60332-3 and
GB18380.
Packing: Steel/wooden reel, wooden reel or steel reel.
