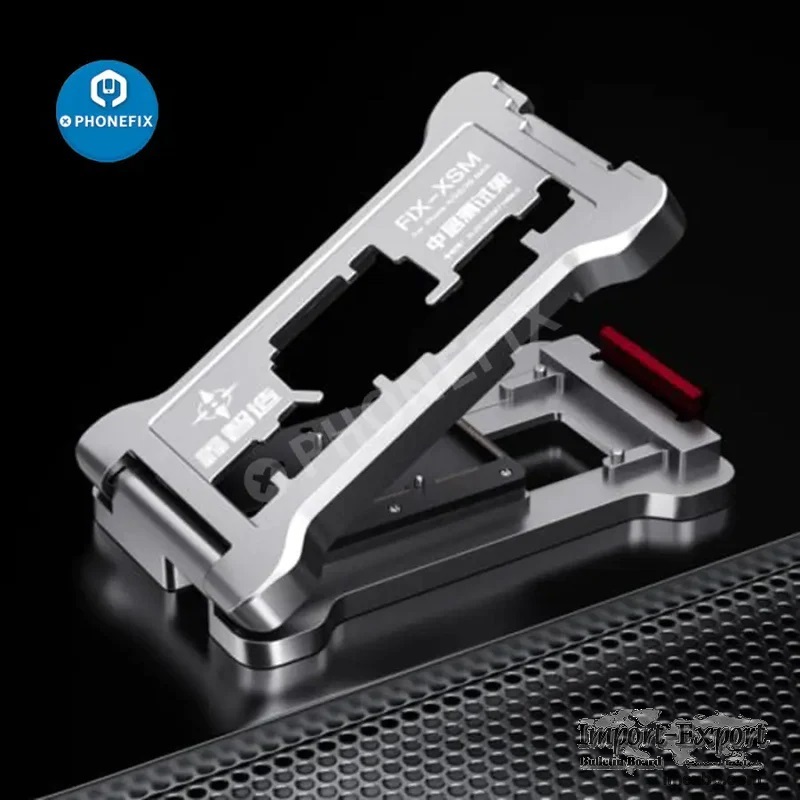

XINZHIZAO Motherboard Layered Test Fixture Frame

XINZHIZAO Motherboard Layered Test Fixture Frame For Phone X /XR/ XS/XS MAX/
11/11 Pro/11 Pro Max/12/12 Pro/ 12 Pro Max Middle layer Logic Board Function
testing, Phone motherboard middle layer tester for testing the Phone X-12 Pro
Max motherboard functions before installation. Professional motherboard
function test stand for Phone X-12 pro max.

Features:
1. Import high-quality pure copper probes (0.5mm probes)
2. High Alignment accuracy
3. for Phone X-12 pro max.
4. CNC Processing Technology
5. Spring button buckle designed, simple operation, fast rebound, timely
feedback, easy press.
6. Suitable for Phone X-12 pro max..
7. Mini design, easy to carry.
8. Advanced inspection to avoid any damage because of repeated disassembly
and installation

Operation:
1. Place the motherboard lower layer on the test fixture
2. Place Place the test pin plate corresponding to the motherboard
3. Place the motherboard lower layer on the test pin board
4. Put every component together, then fasten the buckles on both sides and
start to test it.

Minimum Order: 1 pieces
