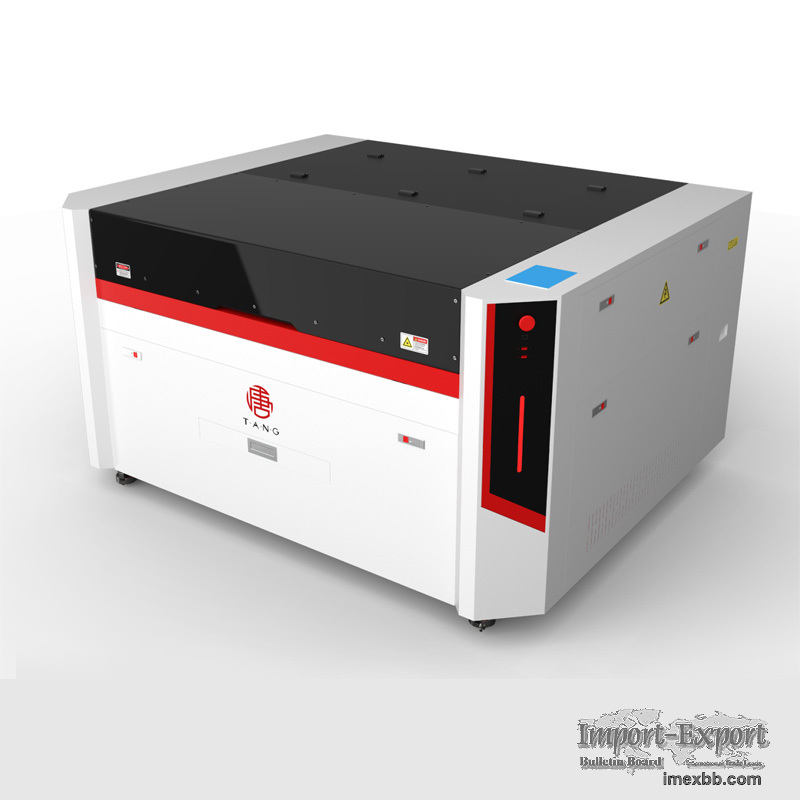

Xinquanli TAN-1390 CO2 Laser Cutting Machine

Xinquanli TAN-1390 CO2 Laser Cutting Machine
1. Honey Bomb Table/Leaf Disk Table: The design of the two platforms increases
the application scenarios of the device. Honey bomb table is suitable for
paper, leather and other soft materials. Knife table is suitable for acrylic,
wood, medium density fiberboard and other hard materials.

2. Four directions in and out design: the four directions of the equipment are
available for batch processing, as well as the processing of special materials
and bulk materials.

3. Red light positioning system: the built-in red light enables the red light
and laser output to be carried out in the same way, and has accurate, real-time
positioning.

4. Automatic focus and manual lifting platform (optional) : One-button
automatic focus, easy to focus when processing different materials, improve
efficiency.

6.Closed integrated guide rail: X axis, Y axis drive and guide rail adopts
closed design, clean appearance, smoke and noise more effective isolation,
improve the stability and accuracy of the movement.
We are Co2 Laser Machine Supplier.
Parameter
Model TAN-1390
Laser power 130W/150W
Laser type CO2 laser
Working area 1300mmX900mm
Processing speed 0-300mm/s
Suitable material Acrylic, glass, leather, MDF, paper, plastic,
plexiglax, plywood, rubber, stone, wood
File format BMP, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, DMG, DXF, PAT, CDT,
CLK, DEX, CSL
Input voltage 220V（AC+10%), 50/60Hz
Machine weight 1940mmX1600mmX1310mm /500kg
Control system RUIDA（RDWorks)
Lifting table Optional configuration
Automatic focus system Optional(Equipped with lifting table together)
Wifi Normal configuration
Contour Cutting CCD Camera(optional)
Cutting thickness (130W)≦Acrylic 10mm,
