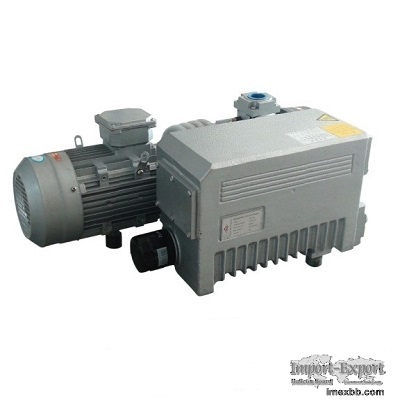

XD Series Single Stage Rotary Vane Oil Sealed Vacuum Pumps

XD series vacuum pump is a single-stage rotary vane oil-sealed vacuum pump,
which is one of main low and medium vacuum equipments. It can be used
separately and be as forepump of vacuum pump, mechanical booster pump, and
turbo molecular pump.

XD series vacuum pumps are available for low and medium vacuum fields, which
are mainly used for pumping air and other dry gases rather than corrosive,
toxic, flammable and explosive gases. Furthermore, they cannot pump the gases
containing tiny particles or dust and cannot transport other small objects.

XD series vacuum pumps can work for long term in the well-ventilated room with
ambient temperature of 5-30 ºC and with humidity ≤80%. In addition to the
above applications, the XD series vacuum pumps can be available other
applications, such as:

1. To increase the amount of the pumping gas and to improve the vacuum degree,
please combine with Roots pumps to form a unit for this.

2. If pumping moist air or condensable gas, the condenser can be installed
before the vacuum pump and the gas ballast valve is installed on the vacuum
pump.

3. If pumping the gases containing dust particles, the dust filters can be
installed in front of the vacuum pump.

4. If pumping the corrosive gases, the corrosion-proof gas filter can be
installed in front of the vacuum pump.

Applications:
Packing,sticking
,
---packaging used by vacuum or inert gases for varied food,metal items and
electronic elements.

---sticking for photographs and advertisement sheets.


Lifting,transporation,sticking,loading/unl , oading

---lifting of glass plate.

---sticking of board,plastic plank.

---loading/unloading of non-magnetic item.

---loading/unloading and transportation of paper sheets and paper boards in
paper making and printing industry.

---transportation of powder materials.



Drying,air-eliminating,dipping

---d , ipping and drying of electronic elements.

---aireliminating of moulds,dopes and vacuum furnace.



Others

---labotary devices.

---medical treatment devices.

---freon recycling

---vacuum heat treatment

Minimum Order: 1 sets
