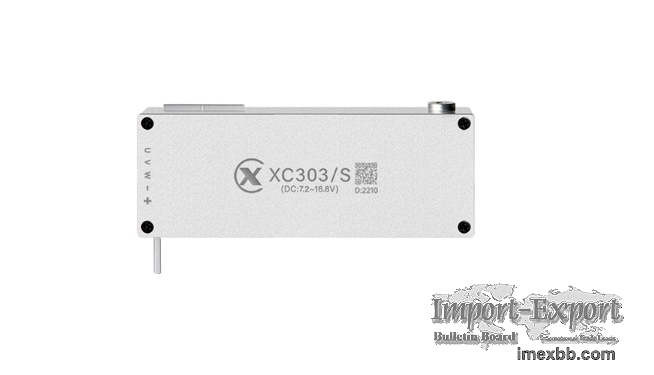

XC303 Motor Controller Designed For Bone Drill And Stryker6 Replacement

Xiongcai XC303 electronic speed controller (ESC) is engineered for medical bone
drill speed control, also it is suitable for Stryker bone drill.

The Xiongcai XC303 electronic speed control (ESC, motor controller) is packed
with a potent combination of hardware and software advancements. This product
is designed for MECIAL DEVICE SUCH AS BONE DRILL, GRINDER, PEDAL TYPES.

The power system of 30A, 7.2v-16.8v, this product will promote performance of
your vehicle. Integrating an Al case in dimension 76.5*39.4*13.5mm, it can be
inserted into handle of bone drill, what you need to do is ensuring the
following items complying with our specification:

a) this product can be inserted into handle and fixed with our any loose;
b) The magnets fixed on the trigger align with Hall Sensors;
c) The max range between magnets and Hall sensors is greater than 5.5mm(for
cutting off the magnetic fiel and stopping completely) and the minimum range is
zero(for maximizing the performance of bone drill).

A Brazil client contacted us and inquired about electronic speed comtroller
several months ago. He said he wanted to buy controller for Skryker#6,#7,#8. He
saw a lot of damaged Stryker bone brill being abandoned because no contollers
for maintenance. He doubted and said we bought some electronic speed controller
from other suppliers, but some of them could not be installed properly and some
of them could not run at their best.

I showed hem the specification and told him to pay attention to the items I
mentioned above. After checking the details, he understood why the produts he
bought before didn't work well, because the range of magnets was not precise,
the magnetic field was unsteady. I told him samples are charged, but expense
could be refunded when he placed order for massive production. He bought 10
samples for test. One month later, he came back to me and said the test was
successful, Stryker bone drill worked very well as orginial. Last week, he
ordered a batch of electronic speed controller for his maintenance business.

We designed a series of protection measures to make sure that the products can
run steadily and safe. Protection measures includes under voltage, over
voltage, over current, over temperature, blocking, short circuit protection,
etc. Furthermore, this product is certified by CSIPER25, ISO11452-2, ISO10605,
ISO16750, ISO7637. You don’t need to worry about the reliability.

Xiongcai electronic speed controllers have been applied to many top brands such
as NISSAN, XPeng, Jingyi Group, ACHR, FAW Group, FAWDE, Shenhai Electrical
Appliances, Kesen, Cummins and more. XC303 ESC will promote the performance to
a new level.

Xiongcai Tech has been specializing the ESC design and manufacture for 15
years, and committed to promote perfornance or your devices. Our team is
capable of excellent RD ability, if you have any special requirements on your
motor control, we will help you achieve your ideals.

Contact us and have a try. visit http://en.xc-bldc.com or google Shenzhen
Xiongcai Technology, we are ready to put your device in its best.
