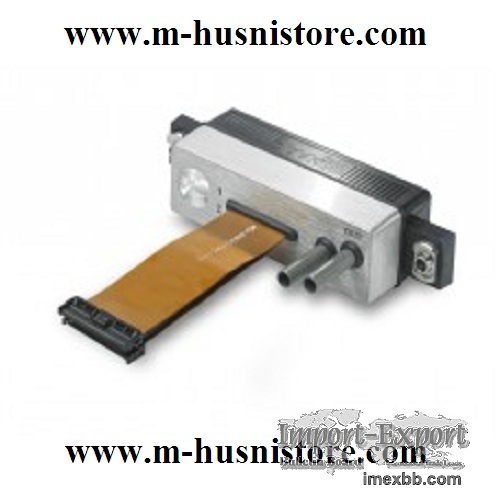

Xaar 1003-GS6U Printhead

Price : US $$1,129.00
For more information about our product and our attractive discount please visit our official website : http://www.m-husnistore.com or please feel free to contact us in our official email : sales@m-husnistore.com
Payment Terms : T/T and Paypal
Packaging Details : We use box and carton ,Uses the high grade packing material. The high strength packing material reduced in the transportation process broken package phenomenon enormously, when leaving the plant uses the carrier to add the expansion membrane packing, guaranteed that the user obtains the optimum condition product.carbon less paper. And as per buyer requirement.
Delivery Time : depend the country

Xaar 1003-GS6U Printhead

Active nozzles : 1000

Print swathe width : 70.5 mm

Number of rows : 2

Nozzle pitch (interleaved) : 70.5 µm

Drop velocity* : 6 m/s

Nozzle density (nozzles per inch) : 360 npi

Printhead weight (dry) : 144 g

Ink type : Oil

Drop volume* (at 8 levels) : 6 to 42 pL

Number of grey levels* : 8

Typical firing frequency* : 6 kHz

Dimensions (WxDxH) : 125x30x60 mm

Enjoy the benefits of new printheads without the cost and complexity of installing a completely new printer:

Achieve enhanced print quality, thanks to Xaar’s Tuned Actuator Manufacturing

See reduced maintenance, thanks to XaarGuard

Fully backward compatible with Xaar 1001* and Xaar 1002 – upgrade is quick and easy.

Remarks: Original

Minimum Order: 1 pieces
