WY Sump Pump

WY Sump Pump
SPECIFICATIONS:
Size (discharge): 40mm to 300mm
Capacity: 7.28-1300 m3/h
Head: 3m-45 m
Handing solids: 0-79mm
Concentration: 0%-70%
Materials:High chrome alloy, Rubber,
Polyurethane, Ceramic, Stainless steel etc.

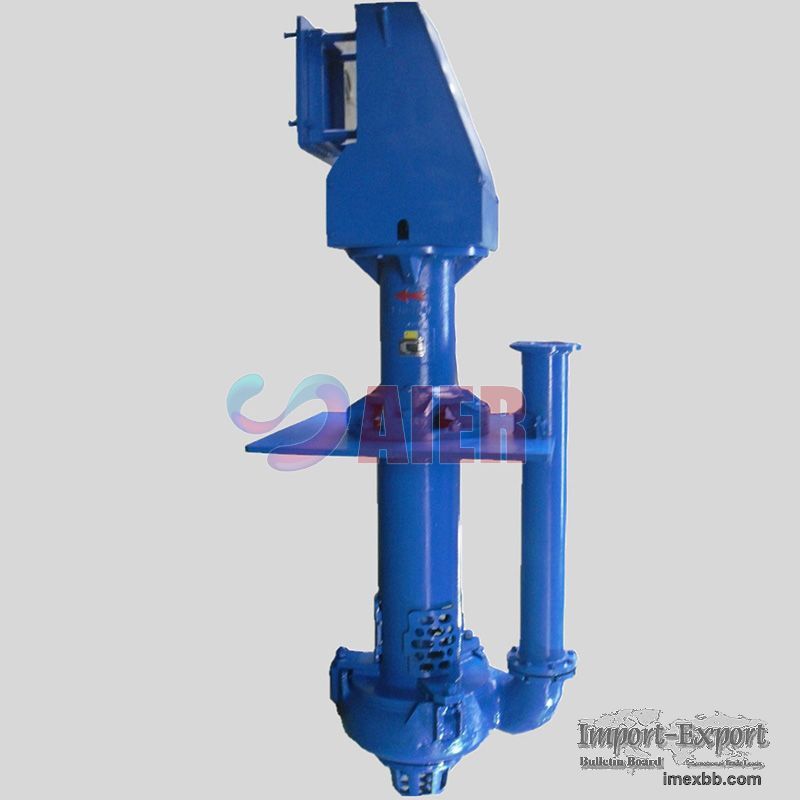

AIER® WY Sump Pump

WY & WYJ sump pump are vertical centrifugal slurry pump, submerged for transfer
abrasive, coarse particles and high density slurry. When working, it needs no
seal water or any kind of seal. It can work well as well when suction volume is
not enough.

Typical Applications
Sump drainage or washdown
Floor drainage
Mill sump
Carbon transfer
Monitoring
Magnetite mixing

Features
WY type pump casing is made of abrasion resistant metal, impeller material can
be abrasion resistant metal or rubber.
The submerged parts of WYJ are all lined with rubber, for transfer corrosive
slurry.

Pump Notation

150WY-S:
150: Outlet diameter: mm
WY: Pump type: High chrome alloy lined sump pump
S: Frame plate type

150WYJ-S:
150: Outlet diameter: mm
WYJ: Pump type: Rubber lined sump pump
S: Frame plate type
More information please click here.

Click to Enlarge
