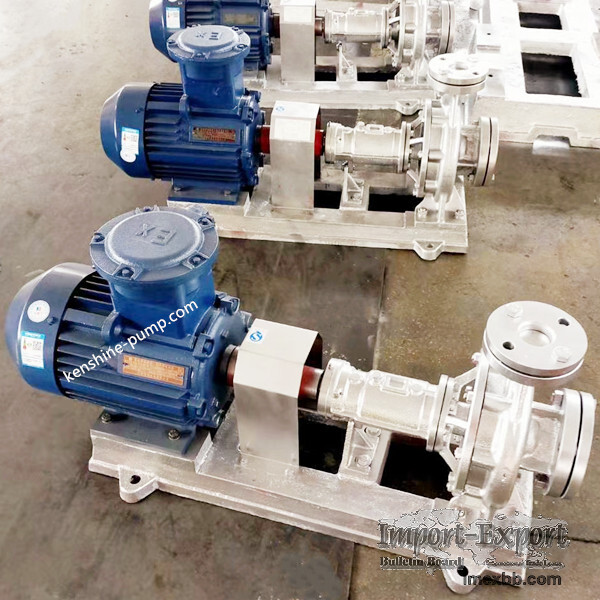

WRY thermal oil circulating centrifugal pump

WRY Hot oil circulation pump

WRY series hot oil /thermal oil circulation pump has been used in the carrier
heating system in China, and has entered various industrial fields such as
petroleum, rubber, resin, textile, printing, construction, road construction,
machinery, etc.. WRY hot oil pump is mainly used to transport weakly corrosive
high-temperature liquid without solid particles, and the service temperature is no
higher than 350 degree Celsius.

model description

WRY 100-65-230

WRY: water-free cooling hot oil pump

100: pump inlet diameter 100mm

65: pump outlet diameter 65mm

230: nominal diameter of impeller 230mm

basic structural form is single-stage single-suction cantilever foot support
structure, the pump is axial suction, and the outlet is vertically upward at the
center, which is installed on the baseplate together with the motor.

The support of WRY hot oil pump adopts the structural form of double-end ball
bearing support. The front end is lubricated by lubricating oil, the rear end is
lubricated by lubricating grease, and there is a guide pipe in the middle to
observe the sealing condition and recover the heat transfer oil at any time.

WRY hot oil pump adopts natural heat dissipation structure, which changes the
traditional water cooling structure, making it simple in structure, small in size,
low in operating costs, good in performance and use.

WRY hot oil pump:

(1) The combination of packing seal and mechanical seal is adopted. The packing
used for packing seal has good thermal adaptability, while the mechanical seal uses
mechanical and good cemented carbide material, which improves the sealing
performance under high temperature.

(2) The use of the third generation polytetrafluoroethylene (PTFE) as lip seal has
made a leap in sealing performance, which is 25 times higher than that of rubber,
and has strong performance.

Minimum Order: 1 sets
