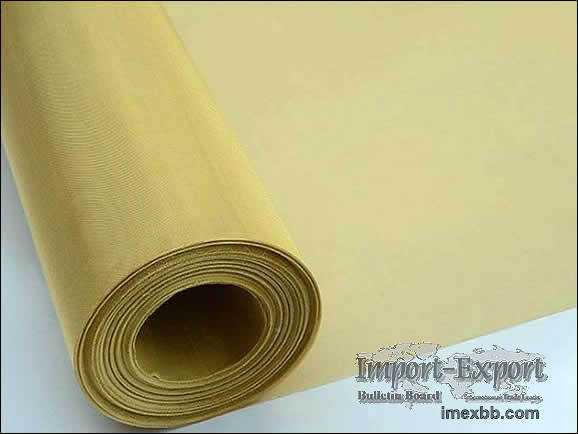

Woven Copper Wire Mesh

Woven copper meshes are woven from a variety of copper and copper alloy wire
materials. We manufacture and fabricate woven copper mesh screens for a variety
of industries including test sieves, filter, EMI/rfi shielding, heat treating
and more.
Common material content: Red copper wire (99.9% pure copper content), phosphor
copper wire (85%-90% copper, 5%-15% tin).
Weaving patterns: Plain weave, twill weave, dutch plain weave, dutch twill
weave.

Plain weave -Each warp wire crosses alternately above and below each weft wire.
Warp and weft wires generally have the same diameter.

Twill Weave -allows a thicker wire and is suitable for heavy meshes. The wire
position of twill weave wire mesh is less stable compared with plain weave.

Dutch Plain Weave -similar to plain weave, while the warp wires are thicker and
packed more closely together. This type of woven wire mesh is mainly used as
industrial filter cloth.

Dutch Twill Weave -combination of dutch weave and twill weave. It is similar to
twill weave, but the warp wires are thicker and packed more closely together.
This type enables a strong wire cloth with super fine filtration. for fine
filtration.

Five Heddle Weave -smooth top surface and an open lower surface. It is ideal to
withstand high mechanical strain and excellent filter performance.

Reverse or Reinforced Dutch Weave -the same as dutch weave except the warp and
weft wires are reversed. the weft wires are thicker than the warp wires. the
opening of the two nearby orientated wires (warp wires or weft wires) at dutch
weave is difficult to define.
