Wire Mesh Filter Elements

Stainless Steel Wire Mesh Filter Elements
Wetter Stainless Steel Wire Mesh Factory supplies stainless steel filter
elements in various sizes and filtration grades, catering to diverse industrial
needs. Our product range includes two main filter media options: stainless
steel sintered fiber web and stainless steel wire woven cloth. These filter
elements are widely used in the petroleum, chemical, chemical fiber,
pharmaceutical, wastewater treatment, and other industrial sectors.

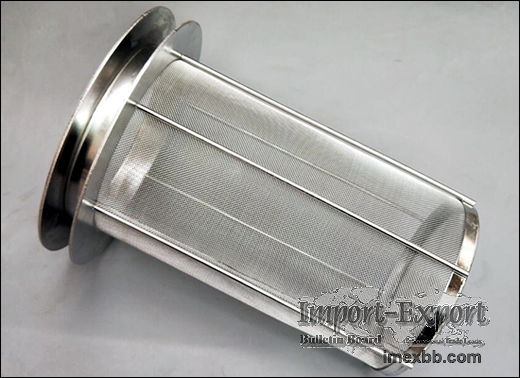

Cylindrical Filter Elements


Features: Constructed from woven or sintered stainless steel mesh, offering
uniform filtration and high mechanical strength.

Applications: Utilized in petrochemical industries, water treatment facilities,
and food processing plants for efficient filtration of liquids and gases.

Specifications:

Diameter: 25 mm, 50 mm, 75 mm, 100 mm
Length: 100 mm, 200 mm, 300 mm, 400 mm
Mesh Count: 10 mesh, 20 mesh, 50 mesh, 100 mesh
Wire Diameter: 0.1 mm, 0.2 mm, 0.3 mm, 0.5 mm
Open Area: 30%, 40%, 50%, 60%
Filtration Rating: 10 microns, 20 microns, 50 microns, 100 microns
Pleated Filter Elements


Features: Designed with a pleated structure to increase surface area, enhancing
filtration capacity without increasing overall size.

Applications: Ideal for hydraulic systems, oil filtration, and air purification
processes requiring high efficiency in a compact form.

Specifications:

Pleat Density: 10 pleats per inch, 20 pleats per inch
Media Area: 1 square meter, 2 square meters
Filtration Rating: 5 microns, 10 microns, 20 microns
Pressure Drop: 0.1 bar, 0.2 bar, 0.5 bar
Temperature Rating: 100°C, 200°C, 300°C
