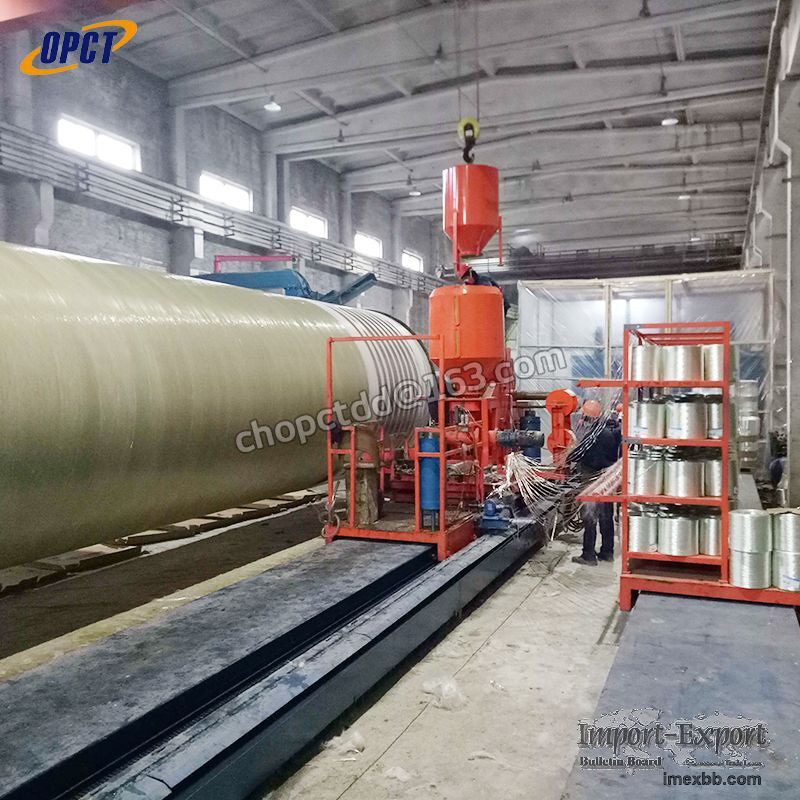

Whole set of fiberglass composite GRP/FRP pipe winding machine

GRP FRP pipe winding production line is used to produce various size and
specifications of FRP mortar pipe and FRP process pipe.
FRP Filament Winding Machine’s key elements such as the transducer, servo
system and photo electrical encoder are from Siemens, Germany. Showing the
English ideograph in menu, operating easily, after the parameters inputted into
the computer, it can be finished the relative design of winding linearity. The
combined movements of the main axle and the carriage controlled by the
computer, conforms the winding rules, the technical parameters and its inner
quality have arrived the advanced level in China.
The range of diameter can be wound: DN300~DN4000mm
The maxi length: 12m
The winding angle: 45°~ 90°
The total power: 10Kw
The tolerance of positioning:＜1mm
The maxi width of roving sheet: 150mm
The productivity: 500kg/h
