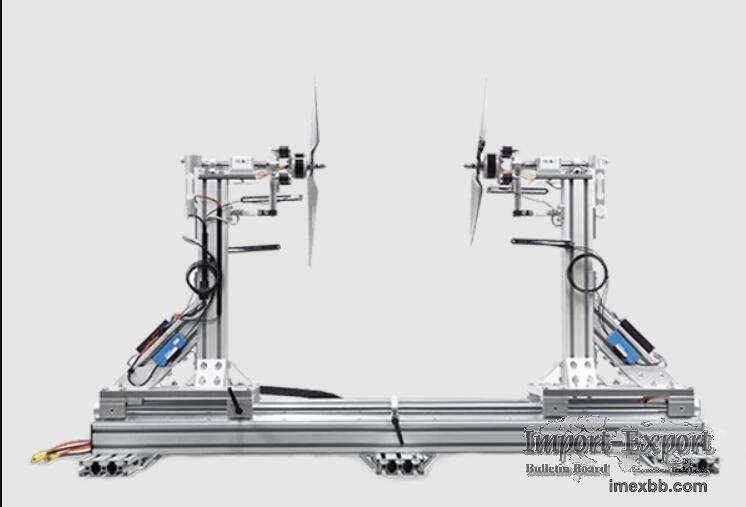

WF-CO-30KGF Coaxial Thrust Stand

WF-CO-30KGF coaxial thrust stand is a face-to-face drone test stand. It
allows the testing of two motors and propellers simultaneously. This setup
helps you to optimize the coaxial prototype.
Each test bench can measure max 30kgf of thrust and max 40 inch propeller.
The distance between the propellers can be adjustable with the sliders.
Suggested Propulsion System 5-20kg thrust
Max Thrust 30KG
Max Propeller 40inch
Torque 20 N•M
Current 0-150A
Voltage 5-65V
RPM 60-150000 RPM
