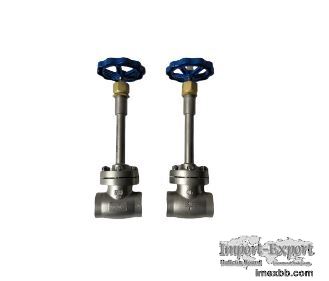

Welding End Low Temperature CF8 CF8M Long Stem Cryogenic Valve for LNG

Low temperature globe valve is suitable for the management system of cryogenic
liquid storage and transportation equipment (such as tank truck or tanker, LNG
station). It has the characteristics of flexible switch and reliable sealing,
and can also be used in other low temperature and cryogenic medium management
systems.
Construction is as follows
Name Cryogenic Globe Valve
Size 1/2"~10"; DN15~DN250
Normal pressure Class 150/300/600/900; PN16/PN25/PN40/PN64
Design standard BS 6364,MESC SPE 77/200,BS1873,ASME B16.34; DIN3356, EN13709
Marked MSS SP-25
End flange ANSI B 16.5,ASME B16.47; EN1092,DIN2543~DIN2547,AS2129
Face to Face ANSI B 16.10,API 6D; DIN3202,EN558-1,EN12982,ISO 5752
Test standard BS 6364,MESC SPE 77/200,API598,API 6D; DIN3230, EN12266,ISO
5208
Suitable temperature -196~+80°C
Medium LNG, LO2,LN2, Lar
Acidic environment NACE MR0175
Operation Handwheel Operated,Gear Operated, Electrical Actuated
