Wege wire Stainless steel Resin Traps filter screen

Stainless steel Resin Traps
Resin traps, also named as media traps, are designed to install on either
existing and new build strainer bodies to capture the media and resins from
loss and prevent them from traveling downstream.

Stainless steel Resin Traps are insurance filters against the possibility of
ion exchange resin or filter media accidentally leaving water treatment
equipment and traveling downstream to cause catastrophic damage to process
areas or equipment.
Resin Trap Screen used in water treatment processes namely in ‘Ion
Exchange’ and other numerous media filter systems, we offer a Resin Trap
Screen with the option for the pipe housing. This screen system is primarily
used as a safety device and is positioned immediately after the outlet
nozzle of the vessel.

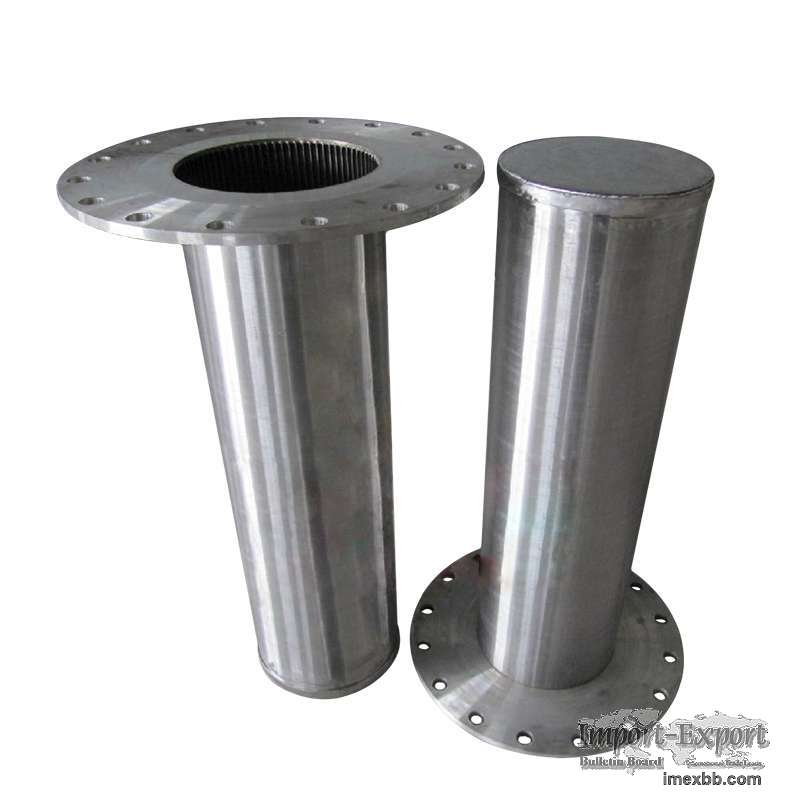

The resin trap screen is normally closed on one side and has a flange on the
other for easy installation of the equipment. The resin trap screen has a
continuous slot and smooth surface. It can be made for flow-in-to-out (FITO)
or flow-out-to-in (FOTI) filtration. The slot sizes are as small to capture
very small particle resins.
Resin Traps How to work?
The resin traps are commonly made of stainless steel in order to avoid
problems that often lead to accelerated corrosion.

A resin trap is a simple, protective sieving device to ensure ion exchange
resin or other filtration media does not leave the water treatment equipment
and travel downstream where it doesn’t belong. Wedge wire screens (Vee wire
screens) are installed near the outlet of the water system line and
protected by mostly stainless steel housing or plastic housing.

When the resin or media passes, it can be intercepted and captured by the
wedge wire filter screens. At the same time, the captured resin can be
discharged out of the system by flushing automatically through the
differential pressure between the front and rear.

Since the slots in the wedge wire can be customed to suit different
filtration fineness requirements.
Application
Stainless steel Resin traps or media traps should be installed in the
product water line of most resin and media-based water treatment equipment
like Softeners, Dealkalizers, Condensate Polishers, Demineralizers, Carbon
Filters, Sand Filters, Portable DI Tanks, Greensand Filters, and/or Multi-
Media Filters.

Also, a resin trap should be considered in the backwash lines of most ion
exchange and carbon systems because temperature-related flow changes can
cause these expensive materials to be sent down the drain.

Minimum Order: 1 pieces
