Wedge wire screen Header Lateral Assembly filters

Header Lateral Assembly- Designs For Horizontal Vessels

Wege wire screen Header lateral assembly consists of a series of wedge wire
screen laterals attached to a central header, it allows process engineers to
design for uniform flow through the treatment media at a wider range of
rates and for a variety of vessel sizes and shapes. Header lateral design
for horizontal vessels is also used for square or rectangular underdrains.

Header lateral assembly can be either side-mounted or centrally-mounted, it
provides the most effective uniform distribution or collection for vertical
vessels. Header lateral assembly systems can be designed to accommodate a
variety of process conditions and requirements while maintaining their
characteristics of high distribution efficiency.

Wedge wire screen laterals spacing, numbers, length, diameter and slot
opening size are based on individual system needs.

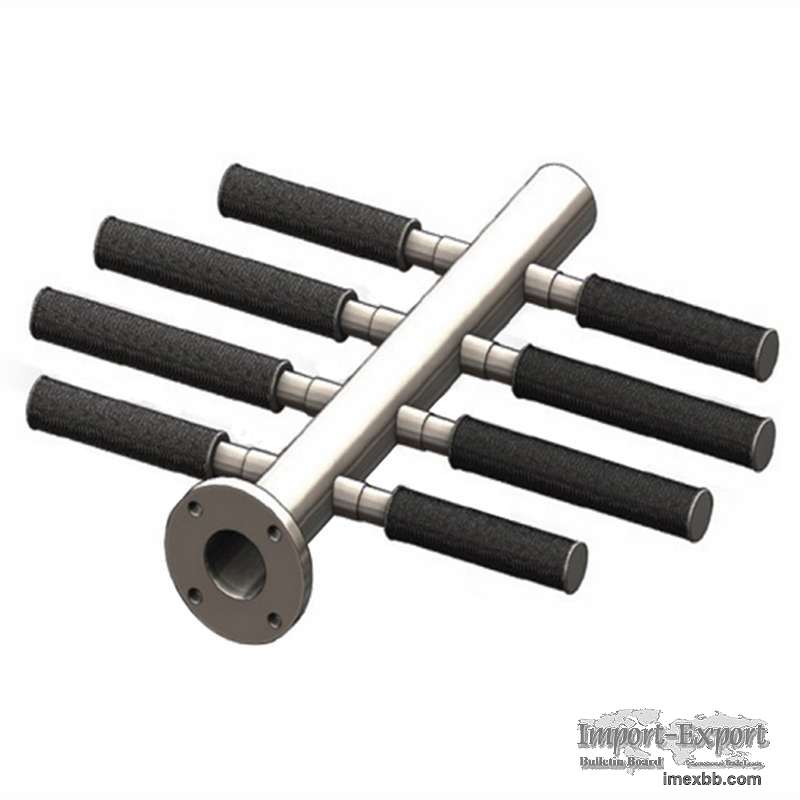

Wege wire screen Header lateral assembly
Features and Advantage
High filtering and screening performance.
Various ending types.
Temperature resistance.
Corrosion and rust resistance.
Non-clogging.
Easy to install and replace.
Low maintenance cost.
Durable and long service life.
Suit different application.

Minimum Order: 1 pieces
