Wedge Wire Screen Collector/Distributor Systems: Ensuring Optimal Flow in V

Wedge wire screen collector/distributor systems are critical internal
components in various vessels, renowned for their exceptional strength,
durability, and ability to deliver uniform flow distribution. These wedge
wire collector systems play a vital role in optimizing the performance of ion
exchange units, media filters, sand filters, carbon strip vessels, carbon
towers, clay filters, and a wide range of water and wastewater treatment
applications.

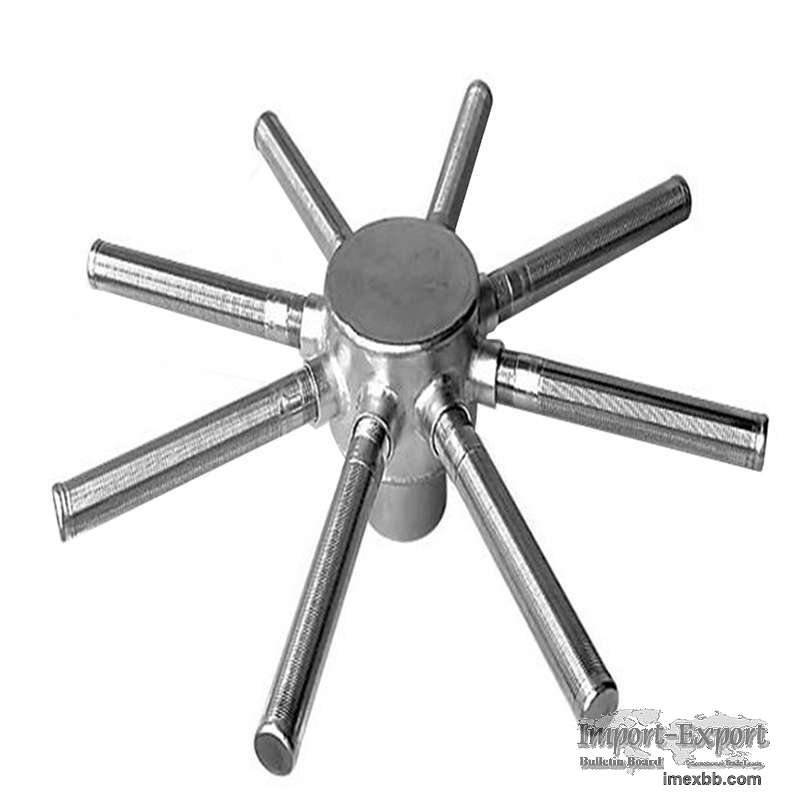

Wedge wire screen collector/distributor systems

Key Features and Benefits:


Even Flow Distribution: Wedge wire screens ensure a consistent and even flow
distribution, maximizing the efficiency of treatment processes.

Exceptional Strength and Durability: The robust construction of wedge wire
screens, coupled with the use of high-quality materials, guarantees long-
lasting performance and resistance to demanding conditions.

Versatile Configurations: Available in both header-lateral and hub-lateral
assemblies, offering flexibility to suit diverse vessel designs and
application requirements.

Flexible Connection Options: YUBO's wedge wire screen laterals and pipe-based
laterals can be seamlessly integrated with distributor headers and spider
hubs using standard NPT threads, fabricated flanges, ANSI connections, or
fully welded assemblies.

Multi-Tiered Designs: Wedge wire hub lateral systems can be configured with
multiple tiers of wedge wire screen laterals to optimize collection and
distribution in specific applications.

Header Lateral Systems for Large Filters: Header lateral systems are ideal
for larger-diameter filters, providing efficient collection across the entire
filter bed.

Enhanced Backwash with Perforated Pipe Distributor: A perforated pipe
distributor can be added to header lateral systems to improve backwash
distribution and further enhance the system's overall strength and
durability.



Superior Construction for Demanding Applications:


The unique internal support-rod structure, combined with the availability of
various materials, including stainless steel and other alloys, makes wedge
wire an excellent choice for constructing robust and reliable underdrain
systems. This adaptability ensures that the system can withstand the rigors
of even the most demanding applications.



Ideal for a Broad Range of Industries:


Wedge wire screen collector/distributor systems are widely used across
various industries, including:

Water Treatment: Ensuring efficient filtration and treatment of potable
water.

Wastewater Treatment: Removing contaminants and pollutants from industrial
and municipal wastewater.

Oil & Gas: Separating solids and liquids in oil and gas production processes.

Power Generation: Filtering water used in cooling towers and other power
generation systems.

Food & Beverage: Removing impurities and ensuring the quality of food and
beverage products.

Mining: Separating valuable minerals from ore and tailings.

Pharmaceutical: Ensuring the purity and quality of pharmaceutical products.

Pulp and Paper: Filtering process water and recovering fibers in pulp and
paper mills.



wedge wire screen collector/distributor for ion exchange



By choosing wedge wire screen collector/distributor systems, industries can
optimize their processes, improve product quality, and reduce operational
costs.

Their strength, durability, and customizable design make them a vital
component for a wide range of applications.

YUBO is the wedge wire collector/distributor systems manufacturer &exporter
in China, we can customize the drawing design as per your project's
requirements.
