Wedge Wire Scallops

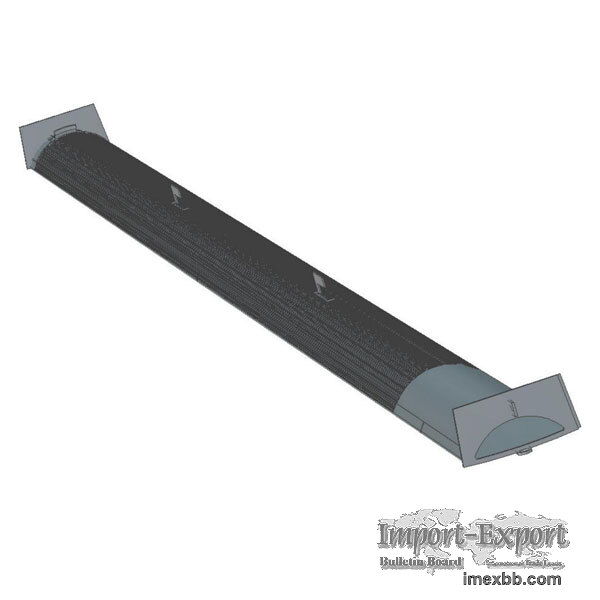

Wedge wire scallops are important components of reactor internals. The
scallops are manufactured from Johnson filters and have a fan-shaped cross-
section, hence their name.

Wedge wire scallops are positioned against the reactor wall through expander
rings. The top of the scallops is sealed and the bottom is open, the lower
part is open and connected to the header at the bottom of the reactor. The
oil and gas discharged from each scallop are mixed in the header and flow
out from the oil and gas outlet.

Purpose: Collect or distribute flow. Retain catalyst and prevent catalyst
leakage in radial flow device.

The Johnson screen scallop is designed to optimize fluid dynamics, enhance
filtration efficiency, and elevate operational reliability in your
industrial processes.

Applications of Wedge Wire Scallops
Gas treatment, Platforming, Reforming, CCR, ammonia converter, styrene

Features of Wedge Wire Scallops
▪ Advanced Wedge Wire Technology: Ensures uniform flow distribution and
minimal pressure drop.
▪ Durability: Constructed with premium-grade materials for long-lasting
performance.
▪ Eco-friendly: Reduces energy consumption and environmental impact.
▪ Customizable: Tailored options available to fit your reactor configuration.
▪ Wide Application: Suitable for various industries, from petrochemicals to
wastewater treatment.

Other Reactor Internals Supply
Support Grid
Center pipe/Inner screen
Header and laterals
Filter Nozzle

Minimum Order: 1 sets
