Wedge Wire Hub and Lateral Nozzle

A sand filter is a step in the water purification process. Wedge wire hub
and lateral nozzles are important components in sand filters to improve
filtration efficiency.


Wedge wire hubs and lateral nozzles are commonly used in sand filters for
municipal water treatment systems. They help remove particulate matter,
sediments, and other impurities, ensuring clean and safe drinking water.

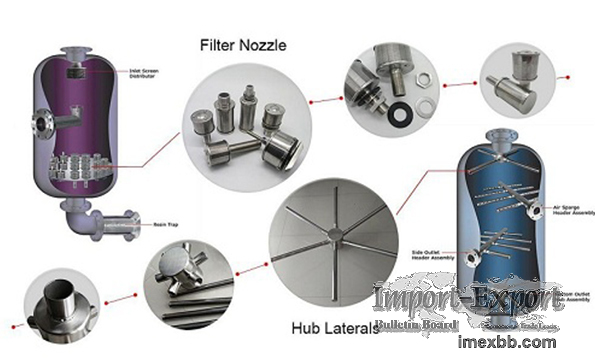

Hub and Lateral Screen


Hub and lateral screens are internal components of the container, mainly
composed of wedge wire screen pipes and hubs. They can effectively collect
and distribute the filter media.



The hub is the central component that connects multiple lateral nozzles to
the main piping system. The hub design ensures that fluid is distributed
evenly across all lateral nozzles for consistent filtration.



The hub and lateral design is crucial for ensuring uniform flow distribution
across the entire surface of the filter media, optimizing the filtration
process.



We can custom design hub and lateral screens according to the sand filter
size, flow rate, media, etc.

Filter Nozzle(Lateral Pipe)


Lateral filter nozzles extend from the hub and are designed to allow fluid
to flow into and out of the filter media.



Our lateral pipe filter nozzles consist of wedge wire screens welded at
specific intervals to form an effective filtration medium.



Filter nozzles can also be installed on the nozzle plate. Placed at the
bottom of the container, this can change the size and distribution of the
nozzles on the nozzle plate to optimize the flow distribution.

Minimum Order: 1 sets
