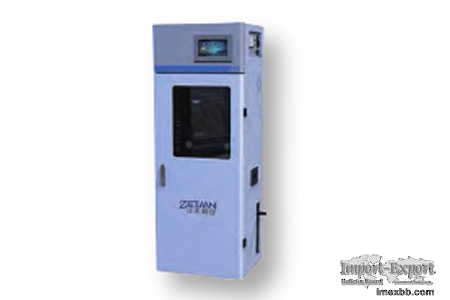

WDet-5000TPN Total Nitrogen Online Automatic Analyzer

HANGZHOU ZETIAN TECHNOLOGY CO., LTD was established in 2008, and as a fast-
growing company specialized in environmental pollution monitoring and
industrial process control, ZETIAN’s instruments and emission analyzers can
provide you best solutions, including series of water quality testing
instruments for sale.

Overview Of WDet-5000TPN Total Nitrogen Online Automatic Analyzer
WDet-5000TPN is a self-developed total nitrogen online monitoring analyzer.
This total nitrogen analyzer is based on the global initiative magnetic
conductivity measurement platform, combining with constant optical fiber and
digestion colorimetric integration technology. The total nitrogen automatic
online monitoring analyzer has features including high precision, low detection
limit, high stability, and low maintenance frequency.

This total nitrogen analyzer works in accordance with the technical
requirements of GB 11894-1989 Water Quality Total Nitrogen-Alkaline Potassium
Persulfate Digestion-UV Spectrophotometry, fully meets the pollution sources,
municipal wastewater, industrial processes in the application areas, and has
passed the certification of CCEP.

Features Of WDet-5000TPN Total Nitrogen Online Automatic Analyzer

High accuracy and reliability, strong capability of anti-interference
● Magnetic conductivity measurement technology used on total nitrogen analyzer
will be not affected by chromaticity, suspended
solids and bubbles, especially suitable for the monitoring of inlet water
● The total nitrogen analyzer's special design of flow and reagent ratio, high
precision, low detection limit(0.2mg/L)
● ZETIAN total nitrogen analyzer adopts constant optical fiber and light
intensity compensation algorithm, small drift for long-term operation

Low maintenance and cost
● The total nitrogen analyzer has a key self-checking function, easy to debug,
maintain, comparison test
● Our total nitrogen analyzer has a self-diagnosis function, assisting
maintainer to analyze the failure
● Imported single-channel high integration valve island which is simple and
easy to maintain, dismantle and clean
● All-day networking for real-time inspection of instrument running state

High intelligent level
● Scan code function: rapidly obtain running/maintenance information of the
instrument
● Our water analyzer instrument has alarm function: provide intuitive and
accurate information for grounding self-check, reagent insufficiency and etc.
● Quality control: equipped with parallel sample test, standard sample
verification and standard recovery rate detection
● Reverse control function: start automatically by flow and PH

Technical Specification Of WDet-5000TPN Total Nitrogen Online Automatic
Analyzer
Method Water Quality Total Nitrogen-Alkaline Potassium Persulfate Digestion-UV
Spectrophotometry
Range 0.2～5～25～50mg/L (customizable)
Zero Drift ±5.0% F.S.
Span Drift ±10.0% F.S.
Indication Error ±10.0%
Repeatability ≤5%
Interval Hourly and interval measurement, and the instrument can also be
started by serial port
Maintenance ＜2 hour/month
Quantitative
Lower Limit 0.2mg/L
Quality Control
Sample Comparison ±10%
Water Sample
Comparison ＞2mg/L±10%
≤2mg/L±0.2mg/L
Reagent 1 set reagents is able for about 250 times of measurement (can be
customized according to field needs)
External
Interface 1×4-20mA input/output (expandable to 2 )
RS485/RS232/USB interface/WIFI/ Bluetooth (optional)
Working Temp 5℃～40℃
Power 200W (220VAC 50Hz), regardless of the pump

Minimum Order: 1 sets
