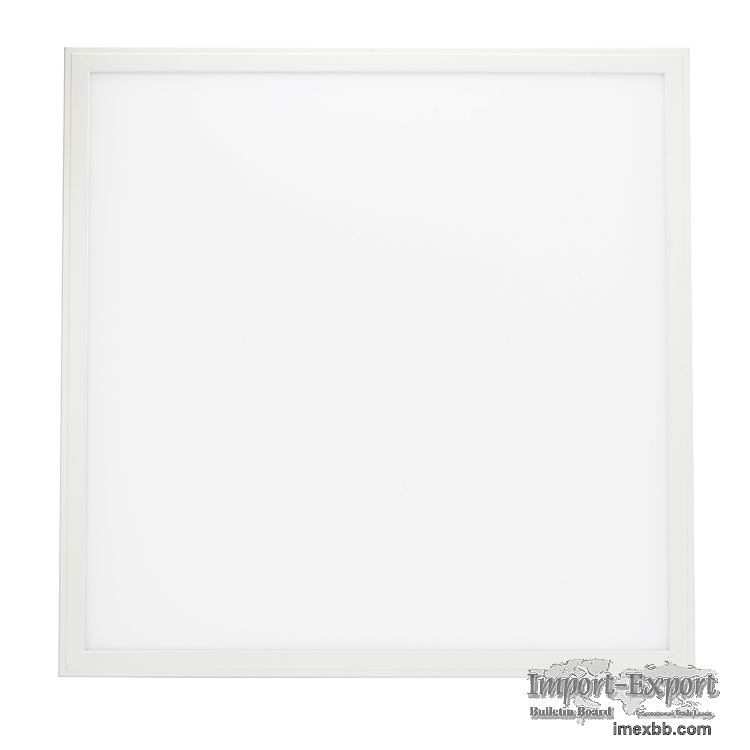

Wattage adjustable and color tunable flat panel light

Wattage adjustable & color tunable led flat panel light.
Visual Uniformity.
High efficiency up to 130LM/W, Premium version for optional.
Flicker free LED drive.

Features
LED flat panel light is the latest new generation of edge-lit lighting
fixture,it has the uniform and smooth lighting effect and elegant appearance
design. And each fixture is 15 SKUS in 1 unit design,so the users can easily
set the wattage and color temperature that they want.
1. Wattage adjustable & color tunable led flat panel light.
One piece wattage adjustable and color tunable panel light=15 pcs regular panel
light now,it can save the shipping time,warehouse space and your stock cost.
2. Visual Uniformity.
Using high quality LGP with silk printing technology, the light uniformity rate
is greater than 85%. No yellow edge and dark area,prefect lighting effect.
3. High efficiency up to 130LM/W, Premium version for optional.
High transmission LGP (more than 90%), high lumen LED efficacy paired with high
power factor drivers.

4. Flicker free LED drive.
Constant current design,PF>0.9,THD<15%. 3 in 1 dimming mode:0-10V,PWM,Rx
Smoothly dimming 0-100%,can dim to off Short circuit,open circuit
protection,and 1KV surge protection.
5. Three installation options.
Each panel with standard clips for recessed and suspending
installation.Optional surface mounted kit available.

Parameter
Model CCT Light efficiency Size(feet) Power LED type
Voltage(V) CRI Color tunable
selectable way
2X2 105LMW panel light
1X4 105LMW panel light
2X4 105LMW panel light
2X4 105LMW panel light 3500K-4000K-5000K 105LM/W 2*2
1*4
2*4
2*4 20W/25W/30W/35W/40W
20W/25W/30W/35W/40W
30W/ , 35W/40W/45W/50W
40W/45W/50W/55W/60W 4014 100-277VAC >80 DIP switch
2X2 130LMW panel light
1X4 130LMW panel light
2X4 130LMW panel light
2X4 130LMW panel light 3500K-4000K-5000K 130LM/W 2*2
1*4
2*4
2*4 20W/25W/30W/35W/40W
20W/25W/30W/35W/40W
30W/ , 35W/40W/45W/50W
40W/45W/50W/55W/60W 4014 100-277VAC >80 DIP switch
2X2 130LMW panel light
1X4 130LMW panel light
2X4 130LMW panel light
2X4 130LMW panel light 3500K-4000K-5000K 105LM/W 2*2
1*4
2*4
2*4 20W/25W/30W/35W/40W
20W/25W/30W/35W/40W
30W/ , 35W/40W/45W/50W
40W/45W/50W/55W/60W 4014 100-277VAC >80 Wall switch
(Standard
0-10V dimmer)
2X2 130LMW panel light
1X4 130LMW panel light
2X4 130LMW panel light
2X4 130LMW panel light 3500K-4000K-5000K 130LM/W 2*2
1*4
2*4
2*4 20W/25W/30W/35W/40W
20W/25W/30W/35W/40W
30W/ , 35W/40W/45W/50W
40W/45W/50W/55W/60W 4014 100-277VAC >80 Wall switch
(Standard
0-10Vdimmer)
Dimensions (unit: feet):

Download
Name Update date Document Download
Specification of Wattage Adjustment and Color Tunable Flat Panel Light
2019.10.29 1.09MB
