Waterproof Test Machine for IPX1 to IPX8

JL-X waterproof test machine is according to IEC60529:1989 +A1:1999 +A2:2013
Degrees of protection provided by enclosures(IP Code), IEC60598, IEC60335 and
IEC 60034-5, GB/T-2423.2, GB4208, GB7000.1. The JL-X includes the following
test grades: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8 (Refer to page
51 of IEC60529). It is widely used in the authentication test organization for
the products such as electrical & electronic products, LED luminaires as well
as in the relevant quality control department for the waterproof detection of
the enclosures protection grades.

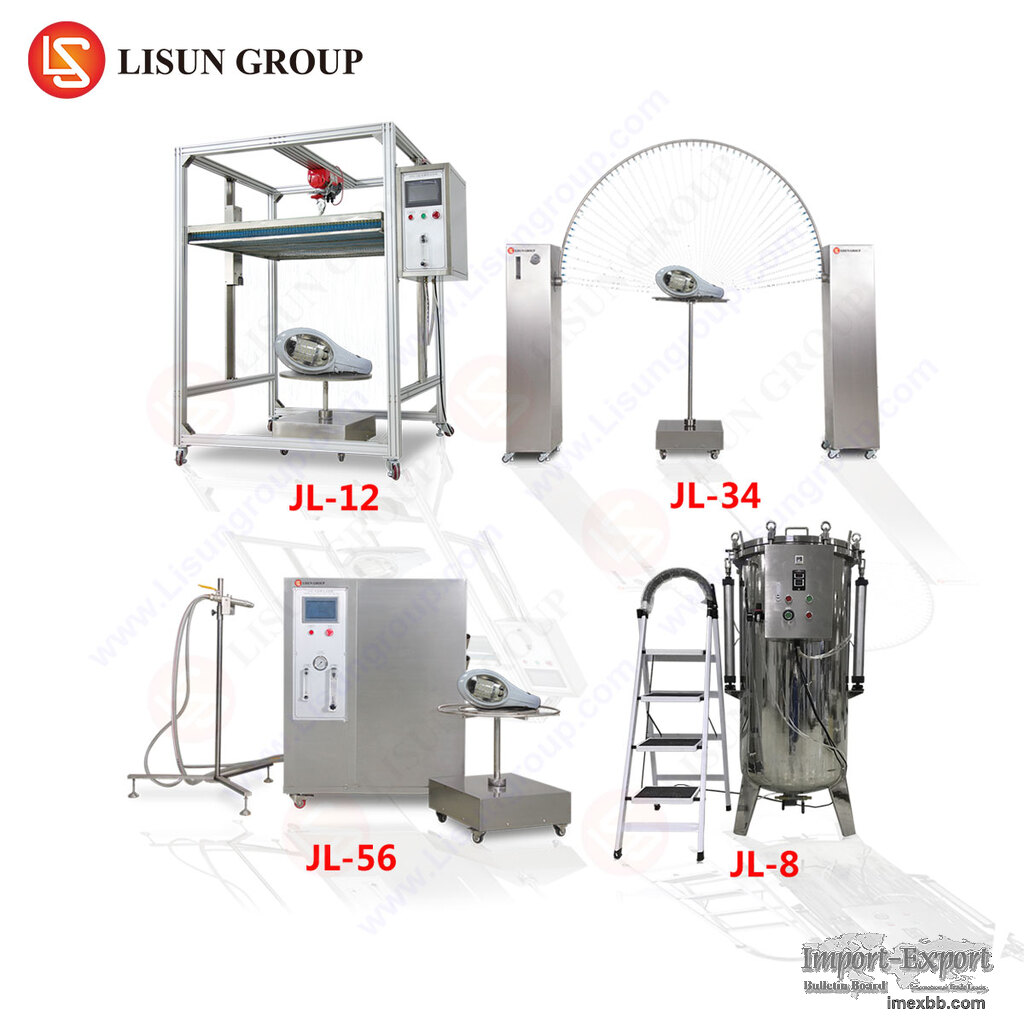

The whole JL-X waterproof test system includes:
• Drip Box (JL-12): The drip box is for IPX1 and IPX2 drip test. The drip box
size is 800x800x45mm (LxWxH). The diameter of drip hole is 0.4mm. The distance
between drip holes is 20mm. The sample can be over 150kg.
• Swing Pipe Water Spray Test Equipment (JL-34): It is for IPX3 and IPX4
waterproof test. The semi-diameter of swing pipe is 1meter (Any other size is
also available). The inside diameter of the swing pipe is 15mm. The sample
rotating table diameter is 1000mm (Or other size according to the diameter of
the swing pipe), and the height is adjustable. The rotation speed is 1~5rpm
which controlled by PLC panel.
• Waterproof Jet Test Device (JL-56): With water supply device size is
1000x1000x600mm, the nozzle diameter is ф6.3mm (IPX5 waterproof test ) and
ф12.5mm (IPX6 waterproof test). The water speed is 12.5 ±0.626L/min for IPX55
and 100 ±5L/min for IPX6
• Immersion tank Waterproof test Device (JL-7): It is for IPX7 waterproof test.
The water tank size is 1000x1000x1200mm (Other size can be designed according
to your request). It can test samples up to 120kg.
• Immersion tank Waterproof test Device (JL-8): It is for IPX8 test. It can
simulate a water depth of 0~50m. The water immersion tank diameter is 600mm and
the height is 1200mm. The compressive stress is 10 atmospheres or design
according to customer's request.

Minimum Order: 1 sets
