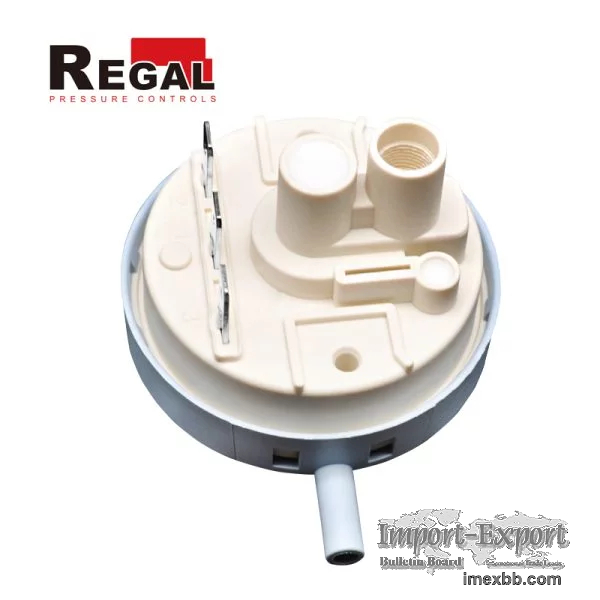

Water Level Pressure Switch For Washing Machine & Dishwasher

Water Level Pressure Switch Features


Using the high-quality silicon diaphragm, which can work in more than 150℃ for
a long time.
The B1 water level pressure switch has a wide range of use in hybrid or
electronic control, such as the front-loading washing machine, dishwasher, etc.
Which can control the single water level in the device. But if you need double
water levels or multi-water levels control, welcome to contact us.
Meanwhile, the Priming level, Reset level, and Overflowing level can be custom-
made, which is dependent on your requirement.
Besides, our level switch is a high degree of accuracy, which is +/-5mmw.c for
the priming level. So you can use it on a demanding device.
For more product information, welcome to click the link to see our product
page. Meanwhile, REGAL is a pressure & flowing industry expert, welcome to
visit our homepage for more information.



B11 Level Switch Specification
Model Number B11 Water Level Pressure Switch
Circuit SPST-NO, SPDT
Electrical Rating 1-2(3):10(2.5) @ 125/250 VAC;
1-6: 1(1) @ 125/250 VAC
Or 0.1A @24VDC Gold plated contact
Terminals 6.3*0.8 mm (#250)/ 4.8*0.5mm(#187)
Priming Level Rang: 50~400mmw.c., Tolerance: +/-5mmw.c.
Reset Water Level Rang: 20~350mmw.c., Tolerance: +/-5mmw.c.
Overflowing Level Rang: 150~600mmw.c., Tolerance: +/-15mmw.c.
Overload Pressure 760mmw.c. (7.6 kPa)
Operating Temperature 85℃ max.
Interface size 5.5mm outer diameter, suitable for 5mm inner diameter hose
Working medium Air or non-corrosive gas
Shell Material PA+GF with UL94-V0
Mechanical Cycles 100,000 cycles
Electrical Cycles Main circuit: 250,00 cycles; Over-flow circuit: 5000
cycles
Safety Certification CE (EN61058)

Minimum Order: 10 pieces
