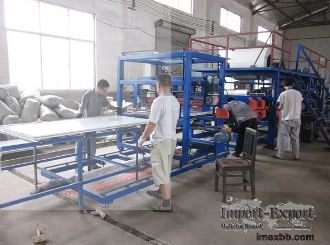

Wall Panel Alloyed Steel Z Lock EPS Sandwich Panel Line

The wall panel roll forming machine, applying alloyed steel and surface hard
chrome coating as forming roller, to make perfect and strong panel. The
product is used to be as steel construction or residence house wall and roof,
or decoration. This type machine can be designed to make hidden joint, cover
joint.

The Sandwich Panel Production Line is composed of four (4) main sections, such
as, UNCOILER MACHINE, ROLL FORMING MACHINE, LAMINATING MACHINE & CUTTING
MACHINE . The production line is 27000mm x 2800mm x 2350mm. The overall weight
is approximately 26 metric tons.

UNCOILER MACHINE:

Type of Uncoiler: Manual
Material of coil: galvanized pre-painted steel coil
Thickness of sheet: 0.3mm-0.6mm
Width of coil: 1200mm
Weight of coil: ≤ 5 mt
