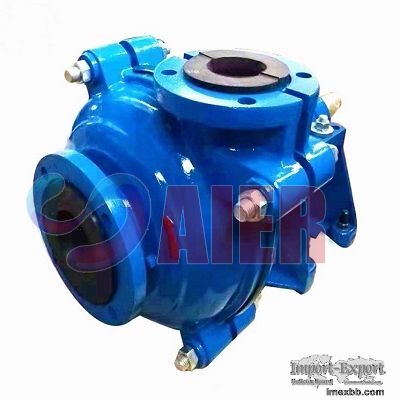

WAJ Rubber Slurry Pump

WAJ Rubber Slurry Pump
SPECIFICATIONS:

Size: 1-22"
Capacity: 3.6-5400m3/h
Head: 6m-125 m
Handing solids: 0-130mm
Concentration: 0%-70%
Materials: Rubber, Polyurethane,High chrome, Ceramic, Stainless steel etc.
AIER® WAJ Heavy Duty Slurry Pump

Typical Applications
SAG mill discharge, ball mill discharge, Rod mil discharge, Ni acid slurry,
coarse sand, coarse tailings, phosphate matrix, minerals concentrate, heavy
media, sugar beet, dredging, bottom/fly ash, lime grinding, oil sands, mineral
sands, fine tailings, slag granulation, phosphoric acid, coal, flotation,
process chemical, pulp and paper, FGD, cyclone feed, etc. We are Rubber Slurry
Pump Supplier.

Features
The frame plate for WAJ series pumps has interchangeable hard metal or pressure
moulded elastomer liners. The impellers are made of pressure moulded elastomer
liners.

The shaft seals for WAJ series can be packing seal, centrifugal seal or
mechanical seal.

The discharge branch can be positioned at intervals of 45 degrees by request
and oriented to any eight positions to suit installations and applications.
There are many drive modes for option, such as V-belt, flexible coupling,
gearbox, hydraulic coupler variable frequency, silicon controlled speed, etc.
Among them, the flexible shaft coupling drive and V-belt feature of low cost
and easy installation.

Pump Notation

200WAJ-ST: 100WAJ-D:
200: Outlet diameter: mm 100: Outlet diameter: mm
WAJ: Pump type: Rubber lined WAJ: Pump type: rubber lined
ST: Frame plate type D: Frame plate type

Click to Enlarge
