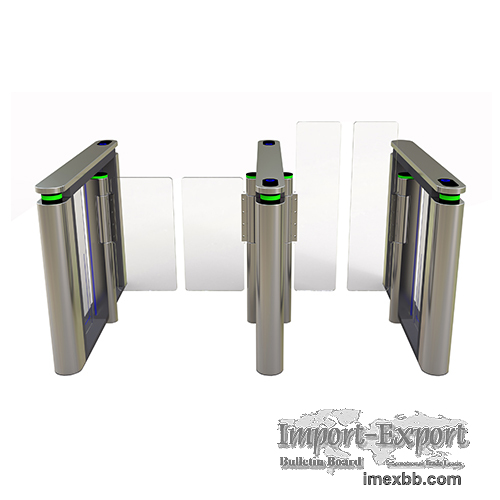

Waist Height Speed Gate Optical Turnstile JDSG-18

Waist height speed gate optical turnstile, waist height speed gate turnstile operates in a smooth, fast, silent and reliable way

Waist height speed gate optical turnstile JDSG-18 is designed with a slim, elegant and stylish apperance and minimal footprint, operating in a smooth, fast and reliable way, ensuring a perfect balance between the stability of the equipment and aesthetics of the surrounding interior needs. By using the advanced detection system, optical speed gate turnstile JDSG-18 can accurately tracks the passage of a single authorised user and effectively prevents fraudulent or unauthorised entry. Because of the unque design and rapid throughput, speed gate security turnstile JDSG-18 is often installed in upscale corporate lobbies, high rise building entrances, luxury apartment complexes, universities, and anywhere else where autonomous entry and aesthetics are important.

As an efficient crowd control solution with the combination of a high bidirectional flow of passage with high levels of security, waist height speed gate turnstile JDSG-18 effectively organizes passageways with increased requirements for design and comfort of passage. Finally, waist height speed gate optical turnstile JDSG-18 provides single directional and bi-directional entry control, and automatically release the passage for free access in case of power failure or emergency.

Waist Height Speed Gate Optical Turnstile Featurers
1. Accurate tailgating detection
2. Precision controlled movement of obstacles and detection of all obstructions
3. Reinforced detection to enhance user protection and manage passage of luggage
4. Obstacles automatically open to free the passage in case of power failure
5. Minimal footprint for maximum throughput
6. Unique detection algorithm prevents fraudulent entry with greater user safety
7. Smooth integration of proximity, magnetic card readers, biometric scanners and other user authentication systems
8. Transparent and elegant design
9. High-density matrix of infrared beams follows users’ progression through the gate
10.The swing panels are available in heights of 1.2m, 1.4m or 1.8m to provide increasing levels of security as required.

Waist Height Speed Gate Optical Turnstile Applications
Offices
Banks
Public institutions
Data centres
Sensitive sites
Schools and universities

Waist Height Speed Gate Optical Turnstile Parameters
Housing Material: #304 stainless sheet
Dimension: 1400 x 150 x 980mm
Power Supply: AC220V / AC110V, 50/ 60 Hz
Channel Width: 600~900mm
Drive Motor: DC 24V brushless motor or servo motor
Pass Speed: 35 ~45 persons per minute
Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal
Rotating Direction: Bi-directional
Communication interface: RS485
Gate open when power failure: Yes
Open Time: 0.2 second
Life Cycle: 5 million times
Working Temperature: -30°C~+70°C
Working Environments: Indoor, outdoor (with shelter)

FAQs
What is a waist height speed gate optical turnstile?
Waist height speed gate optical turnstile is upgraded optical waist height turnstile gate that provides convenient, fast and secure access, featuring fast traffic speed, running speed, accurate positioning function and stable operation. Optical turnstile speed gate employees stable DC24V brushless motor or servo motor to gurantee rapid throughput and long-term stable operation. Optical turnstile gates are supplied with slim and elegant design which allow them to be used for compacted places, and blend into surrounding aesthetics as well. Combining the physical barrier and advanced sensor technology to provide entry detection and prevention without the need of a guard, speed gate optical turnstiles are gaining in popularity for the applications where remaining safe and secure is crucial, and widely used for offices, banks, public institutions, data centres.

How does a waist height speed gate optical turnstile works?
Waist height speed gate optical turnstile is an effective entrance control management acting as physical barrier turnstile between secured area and public area. Optical speed turnstile gate provides bi-directional access in conjunction with a facility access control system. When enter, pedestrians need to present a valid credential which opens the turnstile’s motorized barriers in the requested directions, allowing a single passage at one time. If an unauthorized pedestrian attempts to tailgate on a valid entry, or attempts to enter without authorization, the integrated sensors recognize the illegal passage attempt and sound an alarm, and deny the access. In case of power failure or an emergency, waist height speed turnstile will relase their swings for free access.

Waist height speed gate optical turnstile types
Accroding to the different drive motor, waist height speed gate optical turnstiles are devided into
Brushless motor waist height speed gate optical turnstile: uses DC24V brushless motor, featuring no mechanical friction, low running noise, long life span, higher rotation speed, higher power conversion efficiency.
Servo motor waist height speed gate optical turnstile: uses servo motor, more faster and reliable, longer life span than brushless type speed turnstile.
The cost & price of servo motor waist height speed gate optical turnstile is higher than brushless waist height speed gate optical turnstile.

What are the advantages of waist height speed gate optical turnstiles?
1. Designed with a stainless-steel housing and transparent glass slide walls that create an aesthetically pleasing access checkpoint
2. Provide a strong visual obstacle against intrusion
3. Supplied with tailgating attempt detection to avoid illegal intrusion
4. Slim, elegant design and minimal footprint for blending into surrounding aesthetics
5. Supplied with wrong way detection prevents the gate opening when a user approaches from the secure side and intrusion detection prevent doors opening on to users in the safety zone
6. Provides an effective crowd control mamagement with rapid throughput and comfortable passage in an intense flow of people, avoiding queues at the entrance and exit
7. Supplied with multiple physical barrier height and lane widths to provide easy access to the disabled, wheelchairs, and people with large objects or deliveries, meeting both accessibility and security requirements.

Minimum Order: 2 sets
