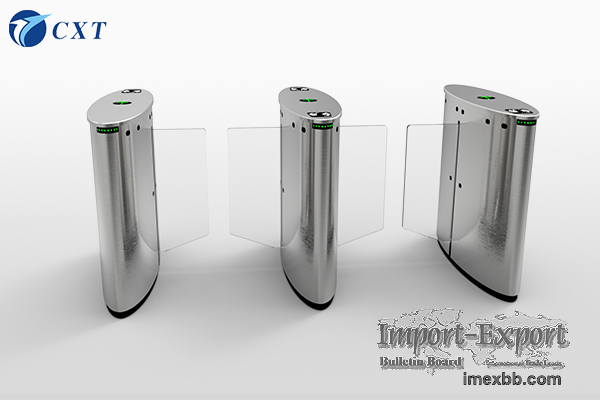

Waist Height Sliding Turnstile Solution PY-510YX

Octagonal Sliding Turnstile Description
Intelligent Sliding door through years of careful development, research and
production of intelligent channel management equipment, mainly for personnel
access to the intelligent management of high-tech products.The glass turnstile
organically integrated mechanical, electronic, microprocessor control, and a
variety of identity recognition technology. For turnstile security solutions,
optional various identification system devices and reliable security protection
devices, alarm device, direction, and extended a friendly LED count display
interface, to coordinate channel intelligent control and management.Intelligent
swing gate easily compatible IC cards, ID cards, bar code cards, fingerprint
reader.To realize access personnel civilized and orderly passage way, the
effective management of personnel access. Can be widely used in stations,
docks, subways, factories, buildings, intelligent community, hotels, clubs,
corporate.

Octagonal Sliding Turnstile Core Features:
High safety with 2.3-meter height
All round personal security with double anti-pinch protection
Intelligent & Advanced Passageway Security Concept
Strong & Stable Control Core
Alert via Sound and light when system breakdown etc.,
Flexible code settings on turnstile control board and it has about dozens of
types working mode for your selection.
Infrared and mechanical anti-clamping provide double protection. When a sudden
impact force is applied during system reset, the gates will automatically stop
or rebound, sending out alarm signal at the same time.
Various alarm patterns, including unauthorized intrusion, reverse passing,
anti-trailing, and overtime passing alarm etc.
Impact resistant, without receiving the open signal, turnstile arm auto locks.
Reverse passing, when somebody attempts to passing reversely, the arm quickly
shuts at the same time and alert.
Flexible access instruction function, high brightness light, and its humanized
prompt function make the passageway more characteristic.
Adjustable for modes of always open and always close can easily adjust via
code-setting on the turnstile control board or external manual button
controlling.
Automatic detection and reset function: System will automatically cancel the
access permissions when no objects passing is detected within the prescribed
time (adjustable).
The turnstile opens automatically to evacuate people in the event of an
emergency, such as fire, power failure, etc.
Can be linked to the variety of external control equipment, receiving the
signal for the turnstile.
Uni-directional and bi-directional access control can be manual seting.
Strong environment adapting ability, Turnstile can be working properly in harsh
environments, with strong ego defense ability. Withstand with weak current,
short circuit, humid, rain and snow weather, typhoon or even other
environmental change.

Octagonal Sliding Turnstile Technical Parameter:
Product Model: CXT-PY510YX
Housing material: Stainless steel 304
Housing processing work-craft: Adopt bend, cut, weld, polish and etc.
Specification and size: 1400*300*1000mm (adjustable per order)
Weight: per different models(about 60-90kg)
Arm length: 235mm(adjustable per order)
Lane width: 520mm(adjustable per order)
Barrier height: 800-1800mm(adjustable per order)
Flow rate: 30-40person/minute
Voltage: AC220 ±10V / 50 ±10% HZ
Drive motor: DC motor（50W24V）
Input interface: Standard communicate signal
Gate open and close gap: 0.5-1s
Booting time: 3s
Suitable temperature: -40℃ ～ 80℃。
Suitable humility: 5％—— 95％
Working environment: Indoor and outdoor

Minimum Order: 1 sets
