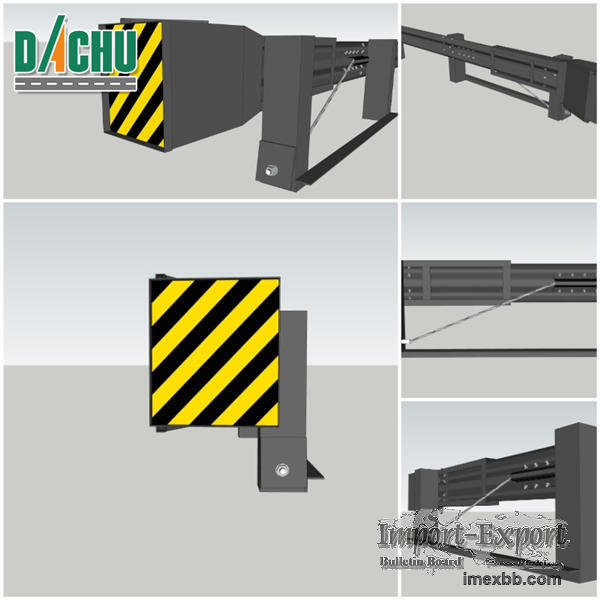

W-Beam Guardrail End Terminals energy-absorbing system

W-Beam Guardrail End Terminals energy-absorbing system
Product Description
The Flared Energy‐Absorbing Terminal is an energy absorbing W-beam barrier
end treatment. The Dachu's version is tested to NCHRP 350 TL‐2, TL‐3
criteria and designed to AASHTO highway specifications.
Normal Sizes 4318*310*82*2.67,5318*502*83*3.5 or can be customized
Raw Material Q235B/Q355B (equivalent to S235JR/S355JR)
Porfile W-beam; Thrie-beam
Surface Treatment Hot Dipped Galvanized
The Thickness of Galvanized 550 g/m2 ;1100 g/m2 or as per your request.
Test Level NCHRP 350 TL‐2, TL‐3
Relevant Parts Post, Spacer (C, U and Sigma types etc) and Fasteners,
Bolts&Nuts,Terminal, Reflectors or according to your needs
Application Roadside Safety
W-Beam Guardrail End Terminals energy-absorbing system
