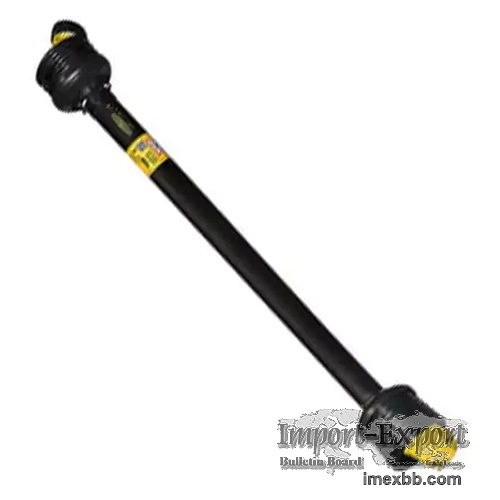

W 2300 Series PTO Shaft Replacement of Walterscheid

W 2300 Series PTO Shaft Replacement of Walterscheid
Length: 1410mm
End 1 1 3/4" 6-Spline Yoke
End 2 1 3/4" 6-Spline K34 Clutch100Nm
Tubing: 0v / 1
Guard: SD15
Max. dynamic capacity, 540 rpm: 28 kW 500 Nm
Max. dynamic capacity, 1,000 RPM: 44 kW, 415 Nm
Values at 5deg working angle and service life of 1000 hours
LZ = length of slid-in in millimeters, starting between intersections
Specifications Of W 2200 Series PTO shaft
Application scope
Mowers
Harvesters
Seeders
Properties
Tractor-side 1-3/8" (6) shaft collar kit
The interval of lubrication is between 50 and 100 hours
Meets EC 993/392 EEC requirements
Conforms to EN12965 safety standard
CE mark available
It is composed of
Semi-clutch axle with shielding
Declaration of conformity
Instruction manual
PTO Shafts Parts and components
EVER-POWER's PTO shafts and parts ensure that your equipment is running. We
are a top manufacturer of PTO shafts, we carry an extensive range of
standard, metric, and constant velocity drivetrains and PTO shaft components
and assemblies (implement clutches, yokes, and oil lines). We provide drop-
in replacement drivetrains as well as components that offer a simple option
for customizing or fixing your system. ever-power stock a variety of CV PTO
shaft drivetrains.

Tractor Yoke Cross and Bearing Kit Shaft Shaft Weld Yoke
Slip Sleeve Tube Tube Weld Yoke Implement Yoke
Yoke & Shaft Assembly Yoke & Tube Assembly Drivelines Guard &
Guard Bearing
PTO Control on a Farm Tractor
Transmission
The simplest and most basic form of PTO can be described as a gearbox PTO.
This PTO shaft can be directly linked directly to the tractor's gearbox. The
PTO is only operational when the clutch of the tractor is engaged. If you
take the machine out of its gear and it is it is slowing down it will stop
working. PTO will cease working. This is an issue for lawn mowing.
Transmission PTOs typically have an overrunning clutch. In the absence of
it, any device that is driven (such as lawn mower blade) could apply force
on the PTO shaft because of inertia. It would then transfer force onto the
transmission. The machine can "drive" on the tractor and, with the drive
clutch of the tractor the tractor will be moving. An PTO overrunning gear
stops this by permitting that the PTO shaft to move freely in a single
direction. In the latest models, it is integrated in the tractor. For older
models this is an extra piece of equipment attached to the PTO shaft.

Live (two-stage clutch)
The live PTO is controlled by two-stage clutch. By pressing the clutch
halfway, you will disable the transmission. However, pressing it fully will
disconnect the transmission and PTO. This allows the driver to reduce speed
or shift gears even though the PTO is operating.

Independent
Independent PTO is the term used to describe PTO shaft is controlled
independently. PTO shaft controls through a separate clutch. As with the
live PTO this permits full control of the tractor as well as managing the
PTO independently. There are two types of freestanding PTOs: one hydraulic,
and the other mechanical. Alongside the PTO lever that is mechanically
independent, the mechanically-dependent PTO has a separate switch selector.
The tractor has to be shut off or stopped to alter the position of this
selector. Hydraulic Independent PTO uses a single selector.

PTO Shaft for Agricultural Gearbox
Agriculture equipment like combiners, tractors, and harvesters are powered
by their own PTO shaft. They are exposed to heavy loads and strain and it is
crucial to understand the reason they failed in first initial place.
Continuous compressing of the shaft could end up damaging the connecting
shafts or the tractor and the implement. A PTO shaft used in the agriculture
gearbox is an integral component of an agricultural tool or tractor. The PTO
shaft used in an agricultural equipment is protected by a safety shield on
both ends. It is commonly found on tools as well as tractor. A PTO shaft can
be joined to the drive side the use of an universal joint while the rear
shaft may be directly welded into the tractor.

Why should you choose Us?
1. Professionally designed and manufactured sales and manufacture of
agricultural equipment for more than 20 years.
2. "ever-power" as well as "HZPT" is manufactured in China.
3. Certification
4. We ensure that we have strict quality control and offer the best customer
service to our customers.
5. We provide top-quality and speedy after-sales support.
6. Our goal: win-win.
7. We are able to design and manufacture machines to meet the requirements
of our customers.
8. We've developed a variety of parts that can be used as replacements for
Japanese tractor and can supply the parts along with the tractor.

Minimum Order: 50 pieces
